AMD’s most budget-conscious CPUs, the Ryzen G Series, which use integrated graphics processors (IGPs), have now felt the effects of the rising tide boosting the Ryzen 5000 Series as AMD’s powerful Zen desktop CPU architecture continues to develop. The majority of AMD’s Ryzen CPUs lack integrated graphics, which is crucial in the current market of exorbitantly expensive video cards and GPU camping. AMD opens its silicon treasure trove with the release of the $359 AMD Ryzen 7 5700G and the $259 Ryzen 5 5600G CPUs to answer an urgent need: powerful graphics for gaming and more without a GPU, as well as eight cores of CPU horsepower. In fact, the AMD Ryzen 7 5700G is a jewel.

Although AMD’s Ryzen 5000 series of CPUs have garnered excellent reviews, AMD has been impacted by broader semiconductor industry challenges, much like every other processor and graphics card vendor. Due to a lack of supply, the high-end chips used in the red team’s CPU and GPU stacks received manufacture priority. This implies that, at least in the retail sector, we haven’t seen any really inexpensive Zen 3 based CPUs.

An eagerly awaited desktop CPU, the AMD Ryzen 7 5700G combines the strength of AMD’s Zen 3 architecture with built-in Radeon graphics. It promises to give outstanding performance for both gaming and multimedia creation and has remarkable specs. We will examine the Ryzen 7 5700G’s salient characteristics, performance metrics, and user experience as a whole in this study.

AMD Ryzen 7 5700G Performance & Specifications

You need to have a board with a 400 or 500-series chipset if you wish to utilize this APU to its best potential. To utilize the iGPU at all, you must, however, ensure that several display connectors are present on the board. Buyers should concentrate on a well-equipped B550 or B450 board because these connections are quite scarce on the more costly X570 boards. For this evaluation, we used the Asus ROG Strix X570-I Gaming, one of the few X570 boards capable of making full use of the APU.

With 8 cores and 16 threads, the AMD Ryzen 7 5700G has a base clock speed of 3.8 GHz and a peak clock speed of 4.6 GHz. It incorporates AMD’s Radeon graphics, giving jobs that rely heavily on GPU capabilities a sizable speed increase. The integrated graphics can handle intensive video games and multimedia operations thanks to a total of 8 compute units and a maximum graphics frequency of 2.0 GHz.

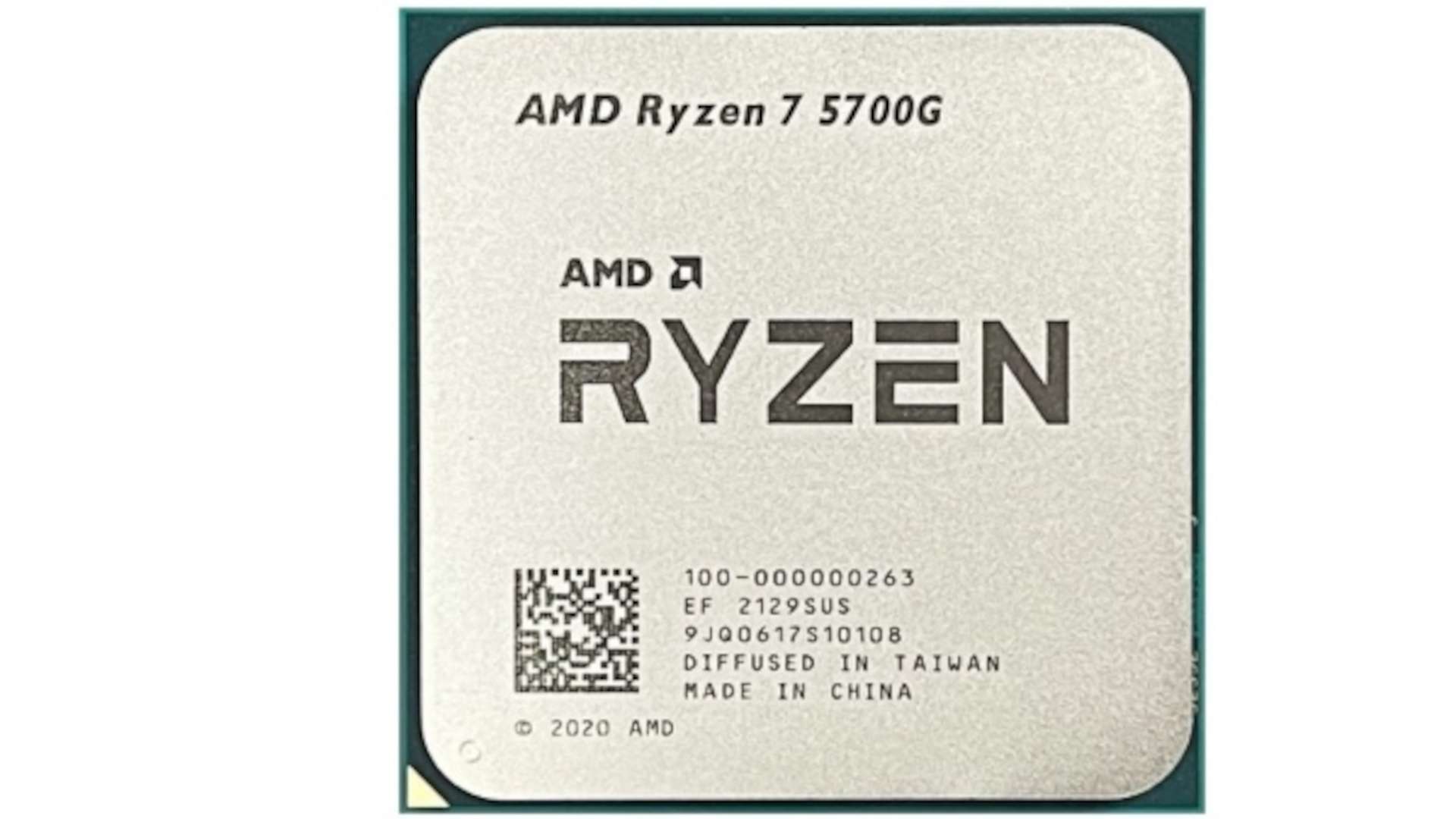

Now for the AMD Ryzen 7 5700G specifications. It is an 8-core, 16-thread Zen 3 CPU with a 7nm, 180mm2, 10.7 billion transistor monolithic chip. And by monolithic, we mean that it combines everything into a single conventional package design rather than following the chiplet design of the other Ryzen 5000-series CPUs.

The AMD Ryzen 7 5700G has a highly desired 65W TDP while having a base frequency of 3.8GHz and a boost frequency of 4.6GHz. However, certain compromises had to be made in order to achieve the 65W objective; it is not just a downclocked 5800X with integrated graphics attached.

Losing PCIe 4.0 capability and half of the L3 cache (16MB vs. 32MB of the 5800X) prevents you from using the greatest SSDs currently available. Although the latter is undoubtedly undesirable, a large portion of the target market might not even notice, other from missing that peak NVMe SSD performance. DDR4-3200 memory is officially supported, the same as with the other Zen 3 CPUs.

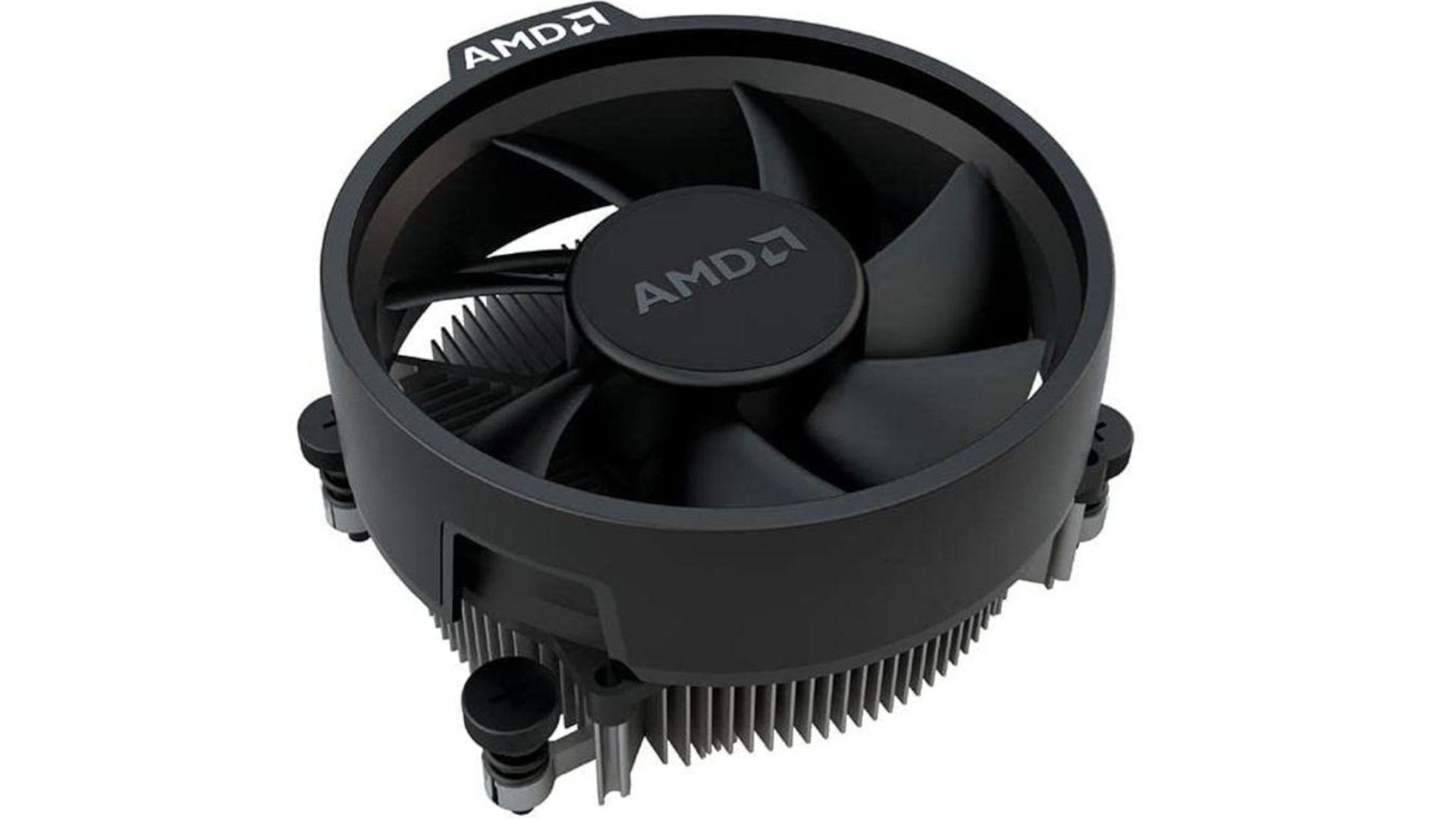

Notably, AMD’s Wraith Stealth cooler is also included. That’s a wonderful value addition, but honestly, we’d call it only acceptable. Almost any aftermarket AM4 CPU cooler will perform better.

Even though it is still built on the outdated Vega architecture, which has been rebuilt and extensively optimized, the integrated graphics definitely qualify as best in class. That has 512 GCN cores running at 2GHz across eight computing units. There will need to be at least one more generation before RDNA-based graphics and RDNA 2 are available.

Since AMD’s integrated Vega GPUs are known to perform better with faster memory, if you want to gaming with one, we recommend spending a little additional money to upgrade from the system’s default DDR4-3200 memory support to a respectable piece of DDR4-3600 RAM to squeeze out a few more frames. It will be quite evident in how well you play.

AMD Ryzen 7 5700G General Information

Regional Availability	Global
Product Line	AMD Ryzen™ 7 5000 G-Series Desktop Processors with Radeon™ Graphics
Max. Boost Clock	Up to 4.5GHz
L2 Cache	4MB
Processor Technology for CPU Cores	TSMC 7nm FinFET
Thermal Solution (PIB)	Wraith Stealth
Platform	Desktop
# of CPU Cores	8
Base Clock	3.8GHz
L3 Cache	16MB
Unlocked for Overclocking	Yes
Product Family	AMD Ryzen™ Processors
# of Threads	16
Default TDP	65W
CPU Socket	AM4
Max. Operating Temperature (Tjmax)	95°C

AMD Ryzen 7 5700G Overclocking potential & Power efficiency

The AMD Ryzen 7 5700G capacity for overclocking is one of its benefits. Users may increase the processor’s speed above its default limits to get even greater performance with the right cooling and customization. Users may easily overclock using the unlocked multiplier, and with the appropriate configuration, they can also obtain more performance.

The AMD Ryzen 7 5700G has outstanding power efficiency thanks to AMD’s energy-efficient 7nm Zen 3 architecture. This CPU is built to deliver outstanding performance while minimizing power consumption. It is a great option for both productivity and gaming tasks since it achieves a fair balance between performance and power consumption.

AMD Ryzen 7 5700G Conclusion

Why the AMD Ryzen 7 5700G is awesome: You want to only play games on your IGP and want to assemble a powerful PC on the (relative) cheap. There is no competition: The IGP of the Ryzen 7 5700G essentially doubles the frame rate of the Intel Core i5-11600K, and not only under certain conditions. Here, the Radeon RX Vega 8 and AMD’s faster memory platform demonstrate their entire potential, pushing both single-player and multiplayer games more effectively than previous AMD IGPs.

But the Ryzen 5 5600G also features one of those Radeon solutions, so if you’re interested in saving $100 for virtually comparable gaming performance, that chip could be a better option for your next build.
