For many years, ASUS has been a leading motherboard partner of AMD, with its ROG Crosshair platform at the forefront. We use the word “platform” here because, over the course of the last 15+ years, this lineup has expanded from one motherboard to encompass Hero, Extreme, and Gene.

The new X670E Extreme is a major advance over the previous generation. Naturally, DDR5 and PCIe 5.0 are now supported, but ASUS has also included 40Gbps USB4, which can also be used as display outputs using Intel’s recently released JHL8540 controller.

Screenshot 2024 02 15 205908

While many would find that a motherboard costing $400 is all they need for a fresh build, other people desire the best, and there aren’t many motherboards that can match the ROG CROSSHAIR X670E EXTREME Motherboard for them. With all the functionality you could ask for, this $1000 board is the most feature-rich X670E board available. With features like integrated 40Gbps USB4, PCIe 5.0, and DDR5, this board is prepared to handle whatever task you give it.

bios advanced

Let’s address the obvious: not everyone requires a motherboard positioned in this manner. Many enthusiast boards available for $400 will fulfill the majority of your needs. At the top of the X670 series, the ROG CROSSHAIR X670E EXTREME Motherboard has all the features you could possibly need and more.

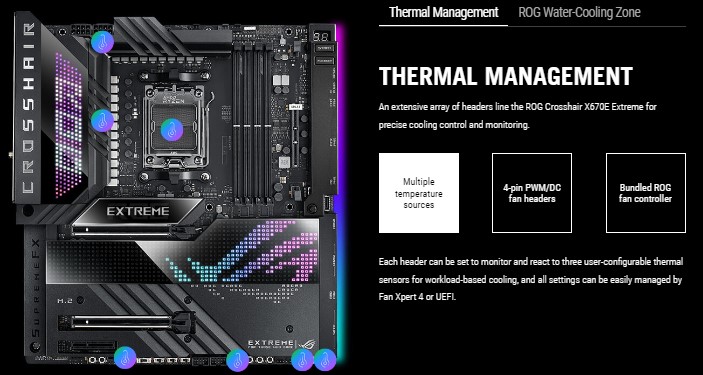

Screenshot 2024 02 15 205922

ROG CROSSHAIR X670E EXTREME Motherboard Packaging & Overview

The ROG branding and supported chipset are located down the bottom of Extreme’s board packaging, which is very distinct from that of any other Crosshair motherboard.

ROG CROSSHAIR X670E EXTREME Motherboard 2

A picture of the board to the left with a port breakdown underneath is displayed on the back.

This board now has a somewhat altered appearance. A portion of the VRM heatsink is covered by the large Crosshair logo along the I/O plate. The socket and four memory slots are the next topics we cover. The board has an OLED screen underneath, and the m.2 slots are hidden beneath board armor.

Screenshot 2024 02 15 205948

The clear CMOS buttons and BIOS flashback are the first of many buttons on the packed rear I/O. This connects to our two LAN ports and then our initial group of USB 3.2 connections. The Wi-Fi 6e antenna connectors and analog audio outputs are located farther down.

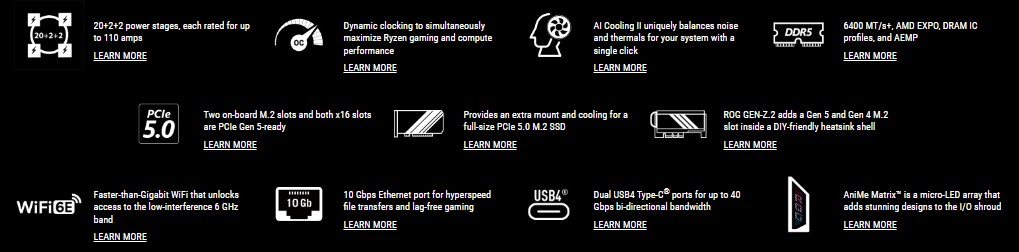

Screenshot 2024 02 15 205648

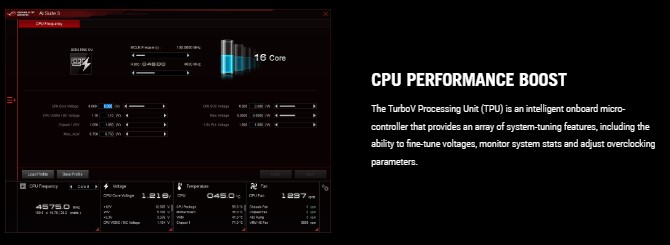

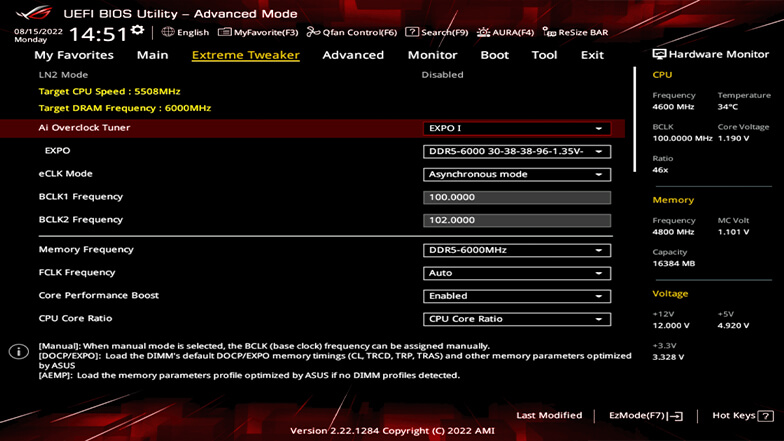

With the exception of a few additional capabilities with the new platform, the EFI remains the same as previous boards. An overview of the CPU, RAM, and BIOS version is provided via the main menu. Setting EXPO for memory and overclocking is done entirely by extreme tweakers. Options for setting SATA and NVMe storage as well as other system devices are available in the advanced menu.

ROG CROSSHAIR X670E EXTREME Motherboard 3

You may configure your fans either automatically or manually using the Monitor tab. The tool menu offers you the ability to erase your storage devices, update your BIOS, and create profiles.

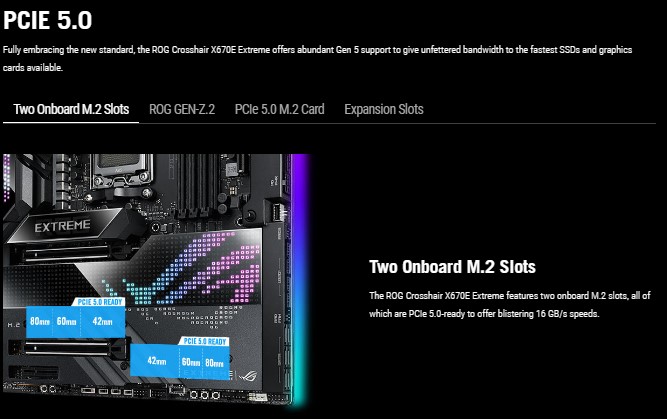

Screenshot 2024 02 15 210055

Along with an amazing assortment of USB connectivity choices, the board has 22 ports available, two of which enable USB4/Thunderbolt 4. Additionally, the ROG Crosshair Extreme performs exceptionally well in terms of networking because it has Intel i225 for 2.5Gbe and Marvell AQC113 for 10Gbe.

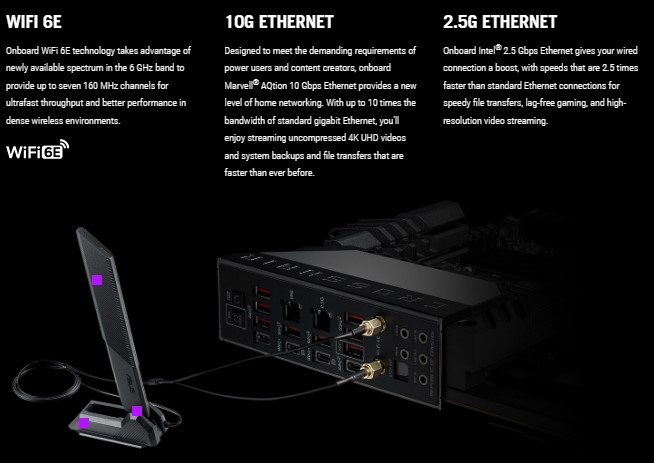

Screenshot 2024 02 15 210153

It’s clear from looking at the ROG CROSSHAIR X670E EXTREME Motherboard design that this is a display-quality board. With its amazing anime matrix LED display that cycles through a succession of animations and text, this engineering marvel is an RGB enthusiast’s dream come true. It leaves spectators in awe.

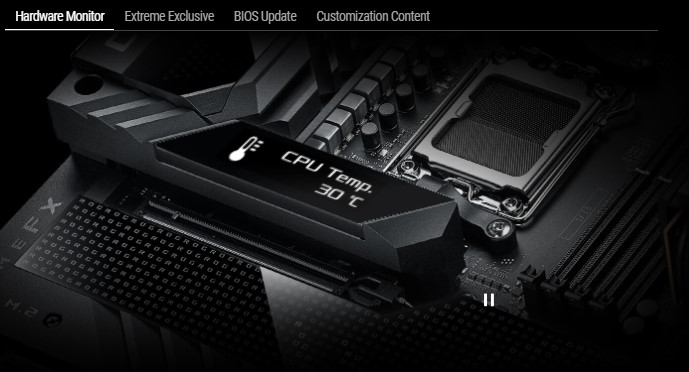

Screenshot 2024 02 15 210315

Additionally, the Livedash OLED display offers succinct and easy-to-read details about the state of your computer, including crucial system parameters like CPU frequency and temperature. Customization is essential, and you can simply make it genuinely unique by swapping out the default GIF for a picture or animation of your choosing.

Screenshot 2024 02 15 205853

Beyond the glitzy screens, the ASUS ROG Crosshair X670E Extreme just has a fantastic appearance that lends strength and distinction to any new PC setup. Large crosshair branding that partially obscures the VRM heat sink is now present on the I/O panel. The M.2 slots that will keep your SSDs operating cool even when pushed to their limits are hidden by board armor, which also covers the power connector and four memory slots.

Screenshot 2024 02 15 210123

A feast for the eyes is produced by the ASUS ROG Crosshair X670E Extreme’s Aura Sync lighting, which adds an additional splash of color. This is especially true when combined with a high-quality AIO cooler.

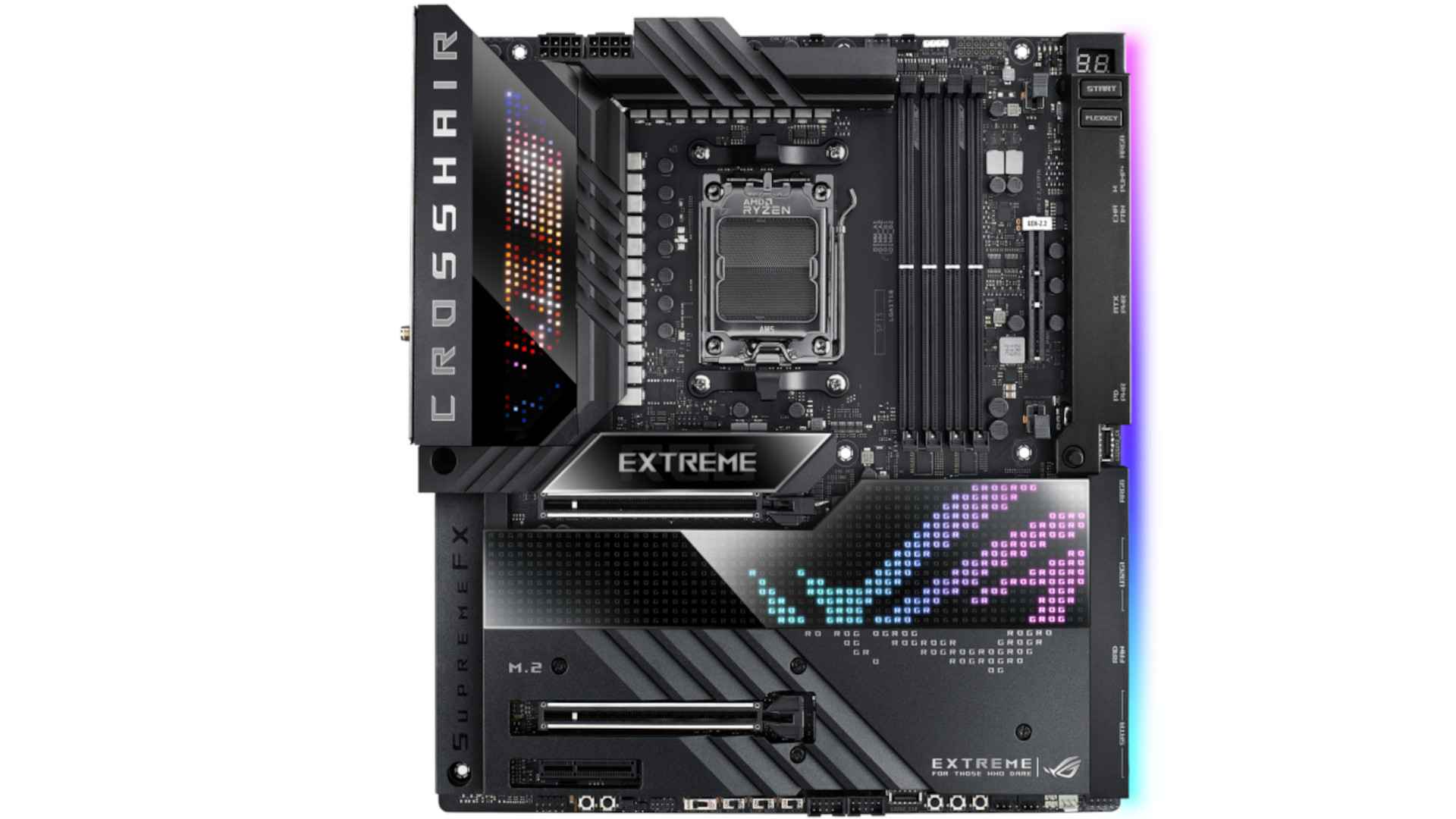

ROG CROSSHAIR X670E EXTREME Motherboard 4

ROG CROSSHAIR X670E EXTREME Motherboard General Information

CPU SocketAMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
ChipsetAMD X670
Memory4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/…
Dual Channel Memory Architecture
Supports AMD® Extended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics1 x HDMI® port*
2 x USB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors’ or
graphic cards’ resolution.
Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors:
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset:
1 x PCIe 4.0 x1 slots
*When the PCIe 5.0 M.2 card is installed on the
PCIEX16_2 slot, PCIEX16_1 will run x8 only.
StorageTotal supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

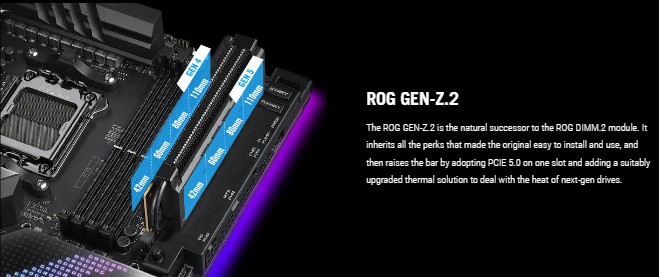

PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type
2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset:
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Screenshot 2024 02 15 210226

ROG CROSSHAIR X670E EXTREME Motherboard Conclusion

One of the most feature-rich boards available for the X670E is the Crosshair Extreme. First off, this board supports a full range of Gen5-compatible m.2 storage in addition to numerous full-length PCIe slots for your GPU and other AICs.

Screenshot 2024 02 15 210032

Furthermore, it has a wide range of USB connectivity, with 22 ports—two of which are compatible with USB4 and Thunderbolt 4—available. This board has an excellent network stack with the Marvell AQC113 for 10Gbe and the Intel i225 for 2.5Gbe.

ROG CROSSHAIR X670E EXTREME Motherboard 5

Moving on to pricing, the Extreme as reviewed comes in at an amazing $999.99 MSRP, making it the most expensive board to date and placing it in enthusiast territory with the AORUS XTREME and MSI X670E GODLIKE.

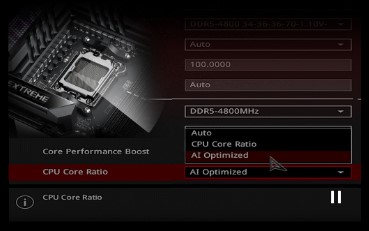

Screenshot 2024 02 15 205757

Pros of the ROG CROSSHAIR X670E EXTREME Motherboard:

  1. High-End Performance: The ROG CROSSHAIR X670E EXTREME motherboard is designed to deliver top-tier performance, catering to the needs of gamers, content creators, and PC enthusiasts. With support for the latest AMD Ryzen processors and advanced features, it offers exceptional speed, responsiveness, and stability.
  2. Advanced Overclocking Capabilities: Built with overclocking in mind, this motherboard provides extensive BIOS options and robust power delivery systems to push your CPU and memory to their limits. It offers advanced overclocking features that allow users to extract maximum performance from their components while maintaining stability.
  3. Premium Build Quality: ASUS ROG motherboards are renowned for their premium build quality and durability, and the CROSSHAIR X670E EXTREME is no exception. Featuring high-quality components, reinforced PCIe slots, and robust cooling solutions, it ensures stable operation even under heavy loads and overclocking scenarios.
  4. Comprehensive Connectivity: With a wide range of connectivity options, including high-speed USB ports, Thunderbolt support, multiple M.2 slots for fast storage, and PCIe 5.0 compatibility, this motherboard offers unparalleled flexibility for connecting peripherals, storage devices, and expansion cards.
  5. Integrated Wi-Fi 6E and Ethernet: Equipped with built-in Wi-Fi 6E and high-speed Ethernet connectivity, the motherboard ensures lightning-fast wireless and wired networking performance. This allows for seamless online gaming, streaming, and file transfers without lag or latency.
  6. Advanced Audio Solutions: Featuring high-fidelity audio components, including premium DACs, audio capacitors, and onboard amplifiers, the ROG CROSSHAIR X670E EXTREME delivers immersive sound quality for gaming, music, and multimedia content. It also supports advanced audio technologies for enhanced spatial audio and surround sound.
  7. Customizable RGB Lighting: With ASUS Aura Sync RGB lighting technology, users can personalize their gaming rig with customizable RGB lighting effects and synchronize lighting across compatible devices. This allows for stunning visual customization and enhances the overall aesthetic appeal of the system.
  8. AI Overclocking and Optimization: ASUS AI Overclocking technology automatically optimizes CPU performance based on system load and temperature, ensuring optimal performance without manual intervention. Additionally, AI features such as AI Cooling and AI Networking enhance system stability and efficiency.
  9. Multi-GPU Support: The motherboard supports multi-GPU configurations, including NVIDIA SLI and AMD CrossFireX, allowing users to install multiple graphics cards for enhanced gaming performance and visual fidelity. This is ideal for gaming enthusiasts and content creators who demand maximum graphics power.
  10. Comprehensive Software Suite: ASUS provides a comprehensive software suite for the ROG CROSSHAIR X670E EXTREME, including intuitive overclocking utilities, system monitoring tools, and firmware update utilities. This makes it easy to fine-tune system settings, monitor hardware performance, and keep the motherboard’s firmware up to date.
Screenshot 2024 02 15 205816

Cons of the ROG CROSSHAIR X670E EXTREME Motherboard:

  1. High Price: As a premium motherboard with top-tier features and performance, the ROG CROSSHAIR X670E EXTREME comes with a correspondingly high price tag. It may be out of reach for budget-conscious users or those who don’t require its advanced capabilities.
  2. Complexity for Novice Users: The extensive overclocking options and advanced features of this motherboard may be overwhelming for novice users or those who are unfamiliar with BIOS settings and system tweaking. It requires some technical expertise to fully utilize its capabilities.
  3. Large Form Factor: The motherboard’s extended ATX (E-ATX) form factor may not fit in all PC cases, especially smaller form factor cases. Users should ensure compatibility with their chosen case before purchasing this motherboard to avoid installation issues.
  4. Power Consumption: The high-end features and performance capabilities of the ROG CROSSHAIR X670E EXTREME motherboard may result in higher power consumption compared to standard motherboards. Users should ensure they have an adequate power supply to support the motherboard and other system components.
  5. Potential Compatibility Issues: While ASUS strives to ensure compatibility with a wide range of hardware and software, there may be occasional compatibility issues with certain components or peripherals. Users should check for compatibility lists and firmware updates to address any compatibility issues that may arise.
  6. Limited Availability of PCIe 5.0 Devices: While the motherboard supports PCIe 5.0 connectivity, the availability of PCIe 5.0 devices such as SSDs and graphics cards may be limited compared to PCIe 4.0 devices. Users may not fully utilize the benefits of PCIe 5.0 until more compatible devices become available.
  7. BIOS Updates Required for Optimal Performance: To ensure optimal performance and compatibility with the latest hardware and software, users may need to regularly update the motherboard’s BIOS firmware. This process can be time-consuming and may require technical expertise.
  8. Advanced Features may be Overkill for Some Users: For users who don’t require advanced overclocking capabilities or extensive connectivity options, the features of the ROG CROSSHAIR X670E EXTREME motherboard may be overkill. A more budget-friendly motherboard with basic features may be sufficient for their needs.
  9. Limited Warranty Coverage: While the motherboard may come with a standard warranty, the duration and coverage may vary depending on the region and retailer. Users should review the warranty terms and conditions carefully to understand their rights and options for warranty support.
  10. Limited RGB Control without ASUS Aura Sync: While the motherboard supports RGB lighting customization, users may find that advanced RGB control features are only available through ASUS Aura Sync software. Without Aura Sync, customization options may be limited to basic presets and color schemes.
