ADATA is not a new player in the storage market and, as we witnessed with the most recent GAMMIX S11 SSD, can create some excellent storage options. The SX8200 Pro, which is essentially a carbon copy of the Gammix S11 Pro, offers an alternative if you don’t like such drives for whatever reason—the graphics, for example, or something else entirely.
I’m not completely sure what this drive adds to the Gammix, but even if there is nothing, it still means excellent performance for a fair price. Adata XPG SX8200 Pro NVMe PCIe M.2 512GB has a 5-year guarantee, up to 320TBW in total, an SLC cache, and a maximum read speed of 3,5GB/s. What could be disliked about that?
These figures might not appear as spectacular in 2022, but it’s important to remember that more people are still utilizing PCIe 3.0 than PCIe 4.0. As a result, this level of performance is more applicable to a far larger population than the enormous numbers produced by the more recent Gen4 drives (at least for now).
Adata XPG SX8200 Pro NVMe PCIe M.2 512GB Specs

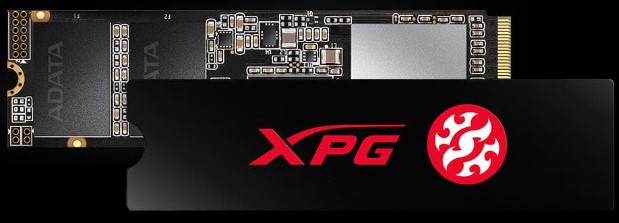

Like with their other M.2 drives, ADATA includes a heatsink that serves more as a cooling device for the controller than for the NAND. The heatsink is merely a thin piece of metal that stays too hot to the touch to function as a cooling mechanism. This is the SX8200 Pro’s lone flaw and the drive’s weakest component straight off the bat. This shouldn’t be a deal-breaker because so many motherboards come with built-in M.2 cooling.
Even though I did not graph running temps, you can observe software temperatures as high as 71°C during prolonged write operations. Nevertheless, the drive’s typical operating temperatures range from 35 to 59’C, depending on the amount of airflow it receives.
As with all M.2 drives, cooling is crucial, and you’d be wise to take precautions to prevent the drive from ever reaching those extreme temperatures. It jeopardizes not only performance but, more significantly, the integrity of your data.

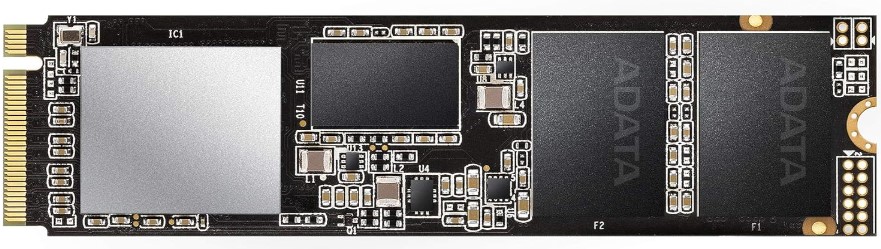

The SMI SM2262EN controller rebranded Micron 3D TLC, and Nanya DRAM are all found in the SX8200 Pro. This drive uses SLC caching, therefore once the cache is full, data is written directly to the NAND, which inevitably results in a decrease in drive speed. For the majority of applications, this shouldn’t be a problem, but during prolonged writes, it might become fairly noticeable.
Adata XPG SX8200 Pro NVMe PCIe M.2 512GB, is made with gamers, overclockers, and video content creators in mind. The SX8200 Pro is the performance leader right out of the gate thanks to its read/write throughput speeds of up to 3.5 / 3 GBps and superior power efficiency compared to all other SSDs we tested. It is especially “cooler” to purchase because of the black XPG heat spreader.
Best of all, the SX8200 Pro is more affordable than both the EVO and PRO models of the Samsung 970 as well as a number of other rivals. The 1TB model was only going for $117 at the time of writing on Amazon(opens in a new tab) (after you click a coupon button).
Adata’s SX8200 Pro, which features Micron’s 64L 3D TLC, is nearly identical to the SX8200 and GAMMIX S11 we previously reviewed, with the exception that this time the SSD is equipped with the new SMI SM2262EN controller, which represents a significant improvement over the SM2262 from the previous generation.
Thanks to an enhanced data flow and firmware updates, the controller offers superior performance and economy. Along with end-to-end data security, a RAID Engine, and LDPC ECC to preserve data integrity over time, it also complies with the NVMe 1.3 specification. In addition, the drive makes use of SLC caching, which enhances performance beyond native TLC write speed.
Adata XPG SX8200 Pro NVMe PCIe M.2 512GB Specs
Capacity | 512GB (476GB formatted) |
Controller | SMI SM2262EN | NVMe 1.3 |
NAND Type | Micron 64-Layer 3D TLC |
Interface | Form | PCIe Gen 3.0 x4 | M.2 2280 |
Max seq. Read | 3,500MB/s |
Max seq. Write | 2,400MB/s |
Max Random Read | 390,000 IOPS |
Max Random Write | 380,000 IOPS |
Endurace | 320 TBW |
Warranty | 5 years |
Price | $84,99 |
Adata XPG SX8200 Pro NVMe PCIe M.2 512GB Performance
The XPG SX8200 Pro from Adata is a powerful SSD. As a result, we compare it to Samsung’s 970 EVO Plus. It is one of the fastest NVMe SSDs currently on the market and comes with a Phoenix controller made in-house with 9xL NAND flash. We also included MyDigitalSSD’s BPX Pro, a direct rival to the SX8200 Pro with a Phison E12 controller and 64L Toshiba BiCS3 TLC NAND flash.
We also listed some less expensive options, such as the Crucial P1, which comes equipped with a Silicon Motion SM2263 controller and Micron’s 64L QLC NAND flash, and WD’s extremely effective Blue SN500, which comes equipped with an internal controller and Toshiba’s 64L BiCS3 NAND flash. For comparison’s sake, we also add the Crucial MX500 SATA SSD and Intel’s Optane 905P, the priciest consumer SSD currently on the market.
The Final Fantasy XIV StormBlood benchmark is a free real-world gaming tool that analyzes game load times quickly and precisely without the unreliability of a timer.
The XPG SX8200 Pro from Adata offers lightning-fast game load times. In Final Fantasy XIV, it essentially ties the Samsung 970 EVO Plus for second place and is only two seconds behind the Intel Optane 905P. The performance is almost two times as quick as the HDD.
Using a 50GB bespoke data block, we measure the speed of file transfers using the DiskBench storage testing tool. 31,227 different sorts of files, including images, PDFs, and videos, are included in our data set. After moving the files to a new folder, we do a reading test on a 6 GB freshly written file.
Performance-wise, the SX8200 Pro greatly outperforms the other entry-level SSDs in our test pool. The SX8200 Pro comes in second overall once more, but this time there is a far wider gap between it and Samsung. It is the fastest performance we have observed from a 500GB NAND-based SSD, with an average speed of 779MB/s. But when reading back our 6.5GB test file, the BPX Pro and 970 EVO Plus both jumped out in front by a few hundred MB/s.
Adata XPG SX8200 Pro NVMe PCIe M.2 512GB Final Thoughts
The ADATA XPG SX8200 Pro is comparable with most other M.2 PCI Express drives in its class because to its quick speeds and affordable price. The drive has benefited greatly from the recent decrease in SSD prices, and all of the benchmarks we did demonstrate its value.
For those who value performance, we still recommend the WD Black, although this is a close race in the PCI Express M.2 SSD market, which is rapidly developing. The ADATA XPG SX8200 Pro is the only drive you need to consider if you’re looking for a speedier drive at a cheaper price.
Is Adata XPG SX8200 Pro NVMe PCIe M.2 512GB good?
Undoubtedly, the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB is regarded as a top SSD. It is suited for demanding jobs like gaming, content production, and data-intensive applications because it delivers high-performance storage with quick read and write rates.
The Adata XPG SX8200 Pro has the following salient characteristics:
The SSD uses the NVMe (Non-Volatile Memory Express) PCIe M.2 interface, which offers higher data transfer speeds than those offered by conventional SATA-based SSDs. Modern motherboards that support the PCIe interface will work with the M.2 form factor.
High Speeds: With sequential read and write speeds of up to 3500MB/s and 3000MB/s, respectively, the SX8200 Pro provides astounding performance. These speeds allow for speedy file transfers, quicker boot times, and shorter program loading times.
Performance that is Reliable: It has a superior controller and 3D NAND flash memory, which add to its overall dependability and consistency.
Warranty and Durability: The SX8200 Pro’s 2,000,000-hour mean time between failures (MTBF) demonstrates its durability. Additionally, this SSD comes with a 5-year limited guarantee from Adata, which increases its desirability.
Storage Capacity: For the majority of users, 512GB of storage is a respectable quantity, giving you enough to store your operating system, apps, and frequently used files.
Overall, consumers looking for high-performance storage options like the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB. It is a wonderful alternative for boosting the storage in your system since it provides quick speeds, dependability, and a competitive guarantee.
Is Adata XPG SX8200 Pro NVMe PCIe M.2 512GB good for gaming?
The Adata XPG SX8200 Pro NVMe PCIe M.2 512GB is an excellent gaming option, yes. It has quick read and write speeds, which can cut down on in-game level loading windows and drastically improve game loading times. Fast access to game files made possible by the SSD’s fast speed makes for a smoother gaming experience with less lag or stuttering.
Why the Adata XPG SX8200 Pro is appropriate for gaming is as follows:
Speed: The SX8200 Pro offers fast data transfer rates with sequential read speeds of up to 3500MB/s and sequential write speeds of up to 3000MB/s. Since game files can now be loaded swiftly, games will load more quickly and respond more quickly.
Low Latency: When compared to conventional SATA SSDs, the SX8200 Pro’s NVMe PCIe interface and M.2 form factor offer quicker data transfer and lower latency. More responsive gameplay may emerge from this, particularly in games where rapid data access is essential.
Performance you can count on: The SX8200 Pro uses premium parts including a dependable controller and 3D NAND flash memory. By preventing performance deterioration during extended game sessions, maintain constant performance over time.
Ample Storage Space: The 512GB of storage space is enough to fit many games, your operating system, and other apps. Although game sizes might vary, 512GB is usually sufficient to fit a respectable number of games, enabling you to keep your favorites close at hand.
Low Latency: When compared to conventional SATA SSDs, the SX8200 Pro’s NVMe PCIe interface and M.2 form factor offer quicker data transfer and lower latency. More responsive gameplay may emerge from this, particularly in games where rapid data access is essential.
Performance you can count on: The SX8200 Pro uses premium parts including a dependable controller and 3D NAND flash memory. Preventing performance deterioration during extended game sessions maintains constant performance over time.
Ample Storage Space: The 512GB of storage space is enough to fit many games, your operating system, and other apps. Although game sizes might vary, 512GB is usually sufficient to fit a respectable number of games, enabling you to keep your favorites close at hand.
Overall, because of its quick speeds, low latency, and dependability, the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB is a great option for gaming. By minimizing load times and delivering more fluid gameplay, it can improve your gaming experience.
Does Adata XPG SX8200 Pro NVMe PCIe M.2 512GB run hot?
Although the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB SSD is built to effectively disperse heat, it is still feasible for it to produce some heat when in use, especially under demanding workloads. The airflow of the system, the level of workload, and the particular design of your computer may all affect whether it runs hot or not.
Adata often includes a heatsink with the SX8200 Pro to assist regulate the SSD’s temperature. This heatsink helps with heat dissipation and can help maintain temperatures within reasonable ranges. If your SSD has a heatsink already attached, it should offer sufficient cooling for the majority of gaming and regular usage circumstances.
It’s important to note that SSDs often operate at greater temperatures than conventional hard drives. Even if the SSD does become heated, it will usually do so at safe operating temperatures that won’t harm its performance or lifespan.
If you are worried about how hot your SSD is becoming, you may check its temperature using a number of software tools that offer real-time temperature measurements. Additionally, maintaining correct operating temperatures may be aided by ensuring sufficient ventilation in your computer case and positioning the SSD in a well-ventilated region.
What gen is Adata XPG SX8200 Pro NVMe PCIe M.2 512GB?
Based on the NVMe (Non-Volatile Memory Express) protocol, the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB SSD uses the PCIe (Peripheral Component Interconnect Express) interface for fast data transfer. In terms of generation, the SX8200 Pro is a member of the NVMe Gen3 (also known as NVMe 1.3) family.
The third iteration of the NVMe protocol, NVMe Gen3, provides considerable performance and efficiency gains over NVMe Gen2 in comparison. Utilizing Gen3 technology, the SX8200 Pro offers quick read and write rates, making it appropriate for high-performance storage needs like those associated with gaming, content production, and data-intensive jobs.
The Adata XPG SX8200 Pro NVMe PCIe M.2 512GB, despite the fact that NVMe Gen4 drives have been released on the market and offer even higher speeds.
Is Adata XPG SX8200 Pro NVMe PCIe M.2 512GB compatible with PS5?
The PlayStation 5 (PS5) is not officially compatible with the Adata XPG SX8200 Pro NVMe PCIe M.2 512GB. The PS5 did not come with support for extra storage through the M.2 slot out of the box, but Sony has said that they want to add it in a later system software update.
Sony has outlined specific specifications for M.2 SSDs that can be utilized with the PS5 in order to assure compatibility. These specs cover the SSD’s physical dimensions, performance parameters, and cooling systems. To guarantee the best compatibility and performance, it is advised to utilize PCIe Gen4 M.2 SSDs with particular performance characteristics.
