ASRock X570 Phantom Gaming 4 AM4 Motherboard Review

You are currently viewing ASRock X570 Phantom Gaming 4 AM4 Motherboard Review

Reviews, benchmarks, and graphs have all been created. In practically every respect, the Ryzen 3000 series has lived up to the expectations. The mainstream CPU industry is now seeing genuine rivalry, which gives consumers more options. Which chipset to purchase is still one of the most hotly contested issues surrounding this launch. Would you like X570?

In contrast to Intel, AMD has pledged to sustain the AM4 socket through several CPU generations. The red team has so far kept its word, and older-generation motherboards are largely compatible with the new Zen 2 CPUs. While this is excellent for customers, it also adds complexity because there will always be more options available.

Is a new X570 motherboard necessary? The new generation of boards costs more per feature than the previous two generations due to the price of the new chipset. This is partly because to PCIe 4.0, a pricey and difficult-to-implement technology.

Of the three Phantom Gaming-branded X570 versions available at launch, the ASUS AM4 TUF Gaming X570-Plus Motherboard is the more cost-effective variant. The X570 Phantom Gaming 4 retains many of the same features as the other models while putting more of an emphasis on providing value for money with a combination of high-quality components, straightforward yet stylish design, and its mid-range gaming-inspired alternative.

The overall layout has a black and grey-themed PCB, a dynamically cooled black and grey chipset, and a grey power supply heatsink that is intended to keep the CPU VCore region cool.

ASRock X570 Phantom Gaming 4 AM4 Motherboard 2

ASRock X570 Phantom Gaming 4 AM4 Motherboard Overview & Appearance

There are two full-length PCIe 4.0 slots on the board’s lower half that run at x16 and x16/x4 speeds. This is caused by the Ryzen 3000 series CPUs driving the top lane at x16 while the X570 chipset is driving the bottom full-length PCIe slot.

Additionally, there are two PCIe 4.0 x1 slots and two M.2 slots, with the bottom M.2 slot supporting PCIe 4.0 and SATA SSDs and the top M.2 slot supporting PCIe 4.0 x4. Eight SATA ports that allow RAID 0, 1, and 10 arrays are also included. On the ASUS AM4 TUF Gaming X570-Plus Motherboard, ASRock’s U.2 adapter kit, which is sold separately, is also supported.

The ASRock X570 Phantom Gaming 4 also supports DDR4-4066 memory, with four slots and a maximum capacity of 64 GB, and employs a 10-phase power delivery with a single 8-pin 12 V ATX CPU power input.

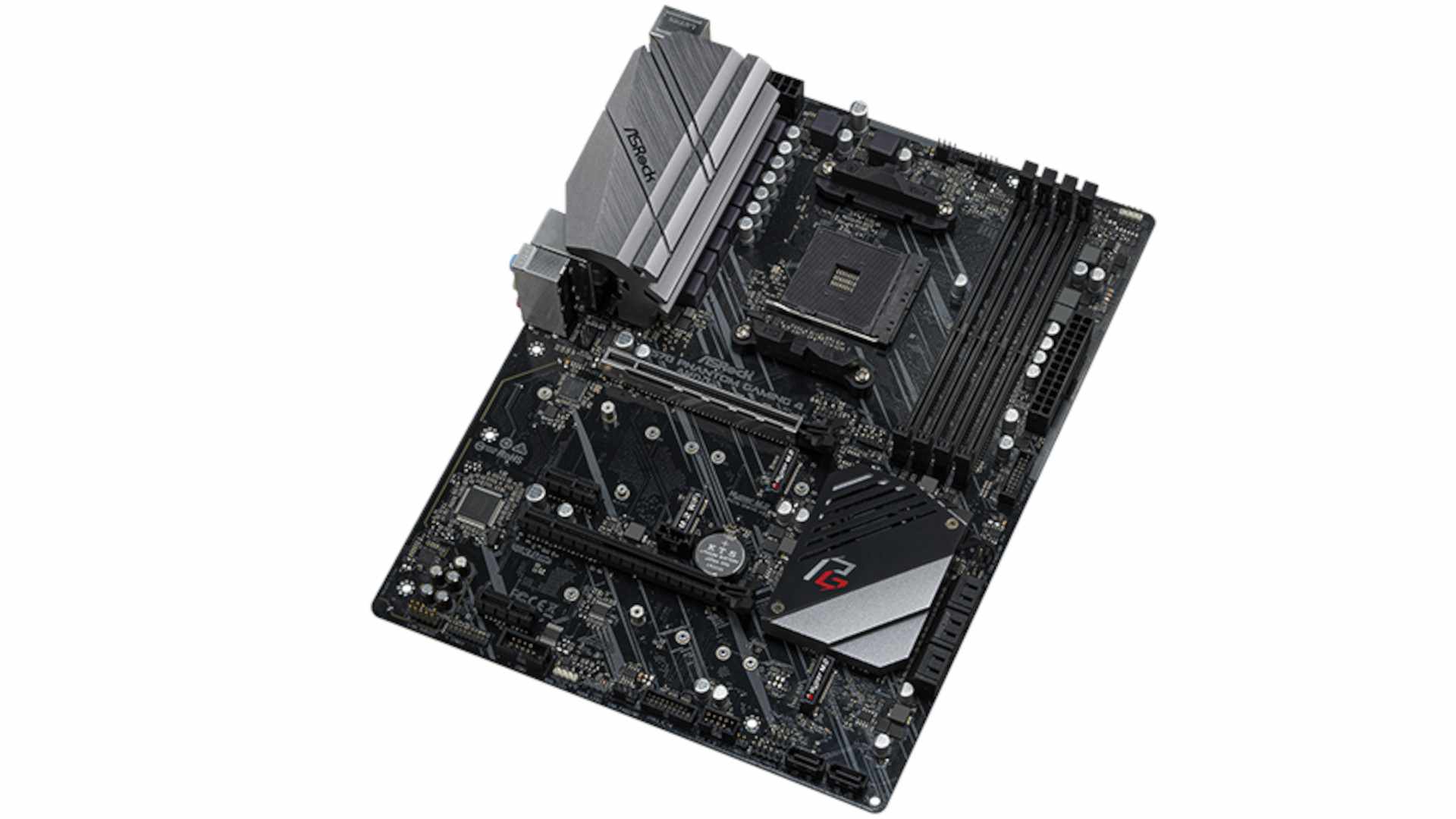

ASRock X570 Phantom Gaming 4 AM4 Motherboard 3

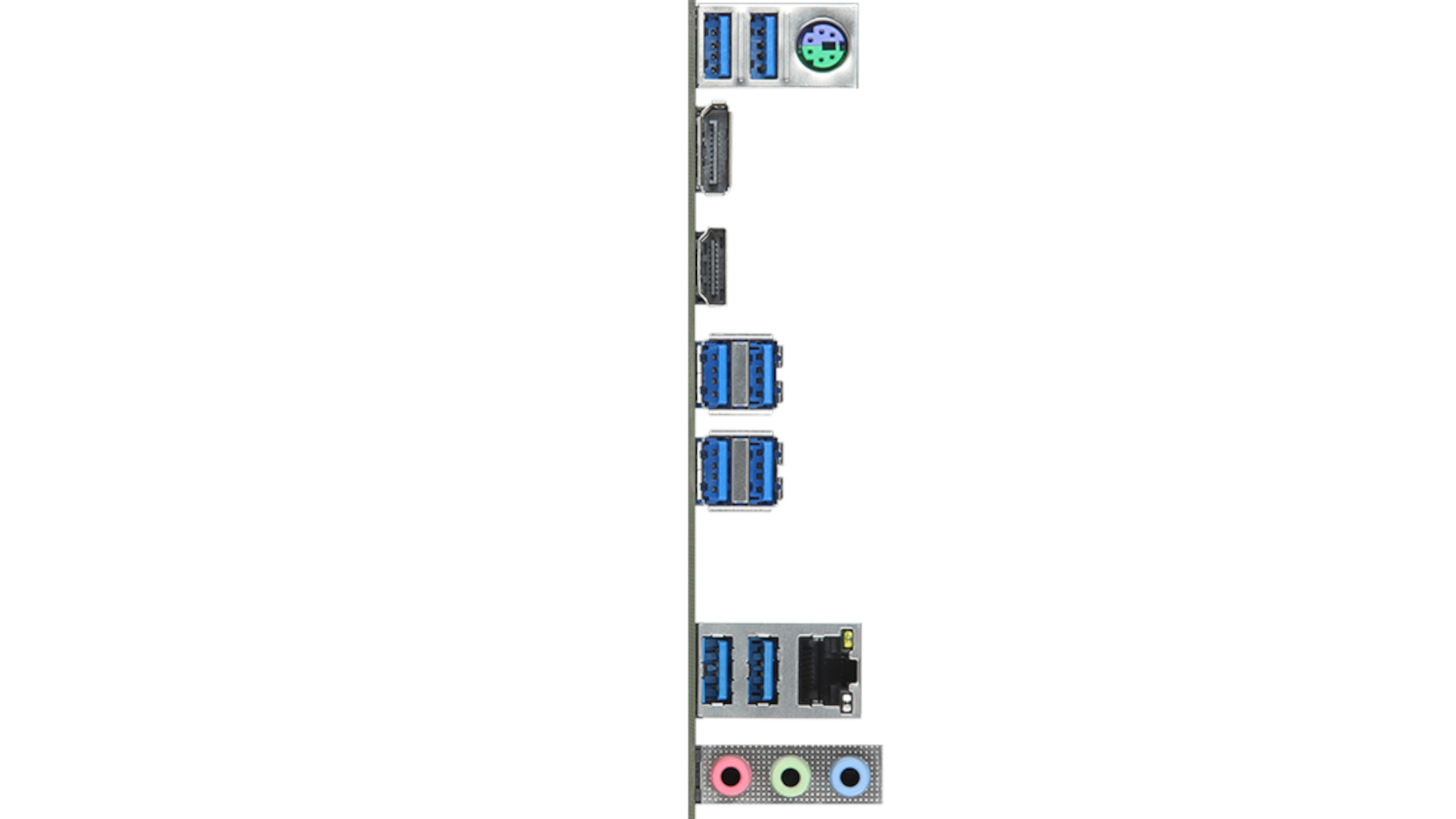

Two USB 3.1 G2 Type-A ports, six USB 3.1 G1 Type-A ports, two HDMI outputs, and two video outputs consisting of a DisplayPort 1.2 output make up the back panel’s mid-range connectivity options. This variant lacks a USB Type-C connector but does have three 3.5 mm color-coded audio jacks and an Intel I211-AT Gigabit Ethernet port that are both powered by the Realtek ALC1200 HD audio codec.

A PS/2 combination port and three antenna ports on the IO shield itself round out the rear panel since there is an M.2 Key E 2230 slot included for customers to attach their own wireless interface.

ASRock X570 Phantom Gaming 4 AM4 Motherboard Specifications

Gaming Armor Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE1)Internet- Intel® LANCooling- XXL Aluminum Alloy Heatsink
Unique FeatureASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
CPU– Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors- Digi Power design- 10 Power Phase design
Chipset– AMD X570
Memory– Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM Slots
BIOS– 256Mb AMI UEFI Legal BIOS with GUI support- Supports “Plug and Play”- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment
Audio– 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- ELNA Audio Caps- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel
LAN– Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I211AT- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE
Rear Panel I/O– 3 x Antenna Ports (on I/O Panel Shield)- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFISoftware- ASRock Phantom Gaming Tuning- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash
Accessories– Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets
Form Factor– ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm- Solid Capacitor design- 2oz Copper PCB
ASRock X570 Phantom Gaming 4 AM4 Motherboard 4

ASRock X570 Phantom Gaming 4 AM4 Motherboard Conclusion

Overall, the ASUS AM4 TUF Gaming X570-Plus Motherboard is a more affordable alternative thanks to its two full-length PCIe 4.0 slots, Gigabit Ethernet connector, and Realtek ALC1200 HD codec (as opposed to the ALC1220). With a starting price of $155 this device targets the entry-level player.

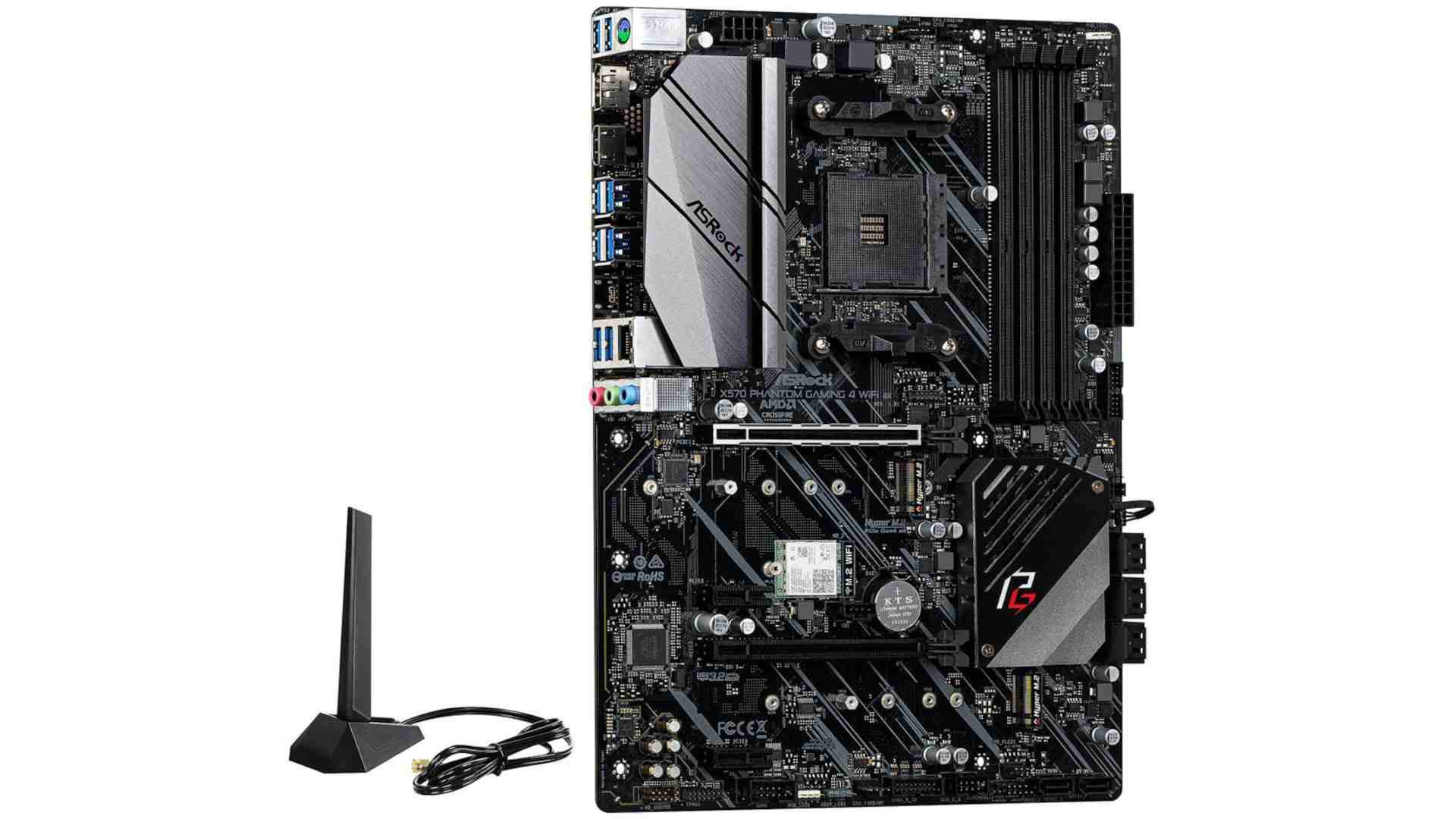

ASRock X570 Phantom Gaming 4 AM4 Motherboard 5
