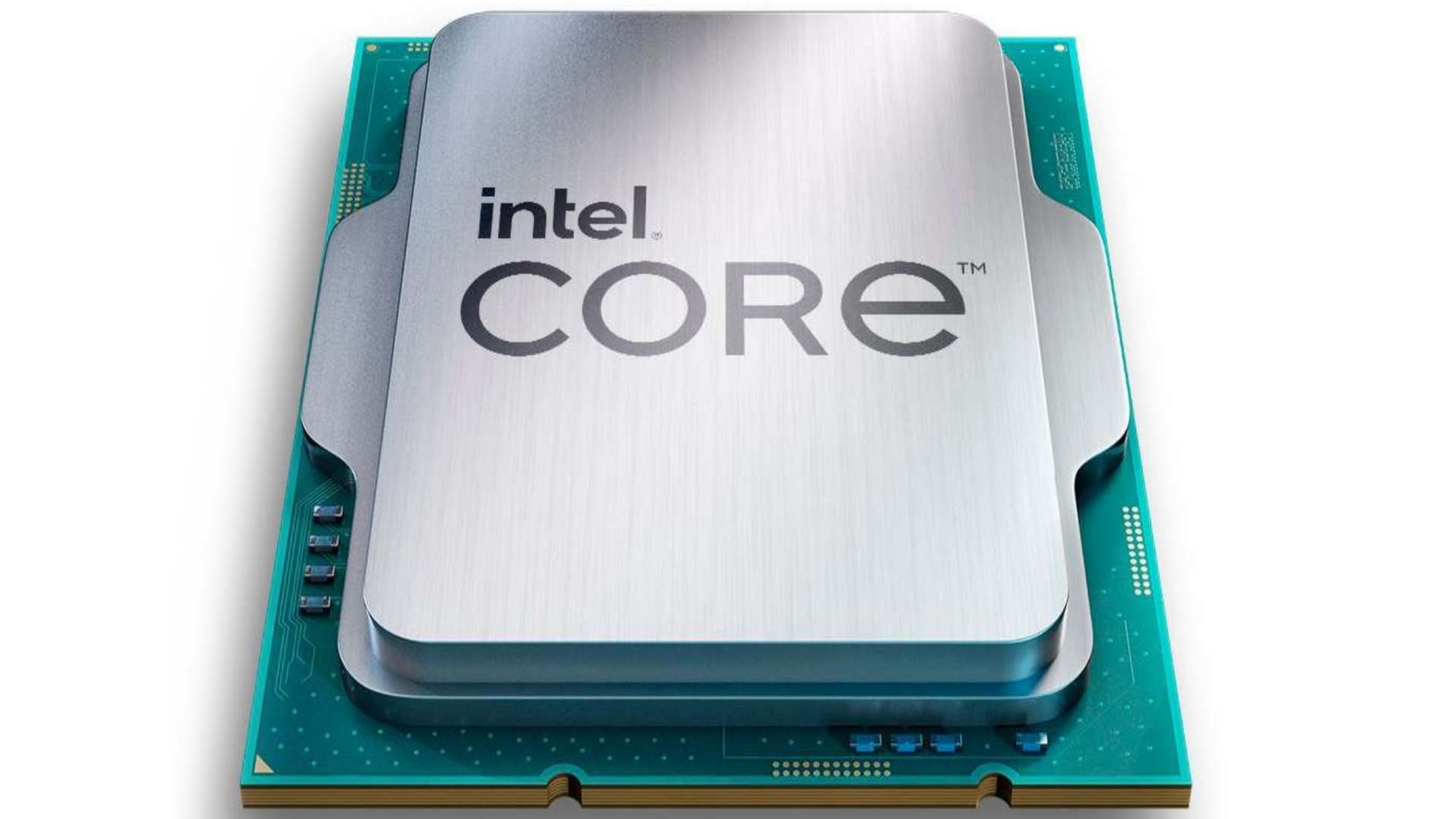

The newest Intel flagship CPU, the Intel Core i9 13900H, is made to provide premium laptops and mobile workstations with performance that’s unmatched. This processor, which is loaded with state-of-the-art technology, attempts to push the limits of mobile computing. We’ll dive into the architecture, features, performance, and characteristics that make the Intel Core i9 13900H a potentially revolutionary mobile processor in our in-depth assessment.

High-end mobile CPU for laptops based on the Raptor Lake-H series (Alder Lake architecture) is the Intel Core i9 13900H. It features six performance cores (P-cores, Golden Cove architecture) and eight efficiency cores (E-cores, Gracemont architecture), and it was first revealed in early 2023.

The Intel Core i9 13900H processor’s pricing varies based on availability and source. However, $617.001 is the suggested consumer pricing for the processor according to the data from Intel® Product Specifications. This pricing just covers the cost of the processor; it excludes the cost of the laptop model, the cooling system, battery life, display quality, and other elements that could have an impact on the laptop’s final cost.

Depending on the supply and demand in the market, you may also find that other vendors, including Best Buy, Versus, or PassMark, have various costs for the processor. As a result, the cost of the Intel Core i9 13900H processor is variable and depends on a number of variables.

Intel Core i9 13900H Specifications

Intel’s cutting-edge architecture is on display with the Intel Core i9 13900H, which combines a clever combination of cores and threads.

By improving overall efficiency, the design paves the path for further developments in mobile computing. This guarantees that the Intel Core i9 13900H will continue to be a powerful processor even in the face of changing software requirements.

When paired with the E-cores, the P-cores’ capability for Hyper-Threading results in a total of 20 supported threads. The efficiency cluster’s clock rate ranges from 1.9 to 4.1 GHz, whereas the performance cluster’s ranges from 2.6 to 5.4 GHz (single core turbo, all-core 4.9 GHz).

When compared to the Core i7-6920HQ, the performance of the E-cores should be comparable to that of the older Skylake cores. A 24 MB L3 cache can be used by all cores. The Intel Core i9 13900H has the whole set of vPro management tools, however it lacks support for an open multiplicator for overclocking when compared to the identical Core i9-13900HK.

High-end mobile CPU for laptops based on the Raptor Lake-H series (Alder Lake architecture) is the Intel Core i9 13900H. It features six performance cores (P-cores, Golden Cove architecture) and eight efficiency cores (E-cores, Gracemont architecture), and it was first revealed in early 2023. When paired with the E-cores, the P-cores’ capability for Hyper-Threading results in a total of 20 supported threads.

The efficiency cluster’s clock rate ranges from 1.9 to 4.1 GHz, whereas the performance cluster’s ranges from 2.6 to 5.4 GHz (single core turbo, all-core 4.9 GHz). When compared to the Core i7-6920HQ, the performance of the E-cores should be comparable to older Skylake cores. A 24 MB L3 cache can be used by all cores.

The Intel Core i9 13900H has the whole set of vPro management tools, however it lacks support for an open multiplicator for overclocking when compared to the identical Core i9-13900HK.

Different memory types up to DDR5-5200 (up from 4800 MHz for the 12th gen) are supported by the inbuilt memory controller. The operating system can choose which thread to employ on the performance or efficiency cores for optimal performance with the help of the hardware-based Thread Director. The CPU also incorporates DL Boost and GNA 3.0 for AI operations (via AVX2).

Version 8’s Quick Sync is compatible with hardware decoding of MPEG-2, AVC, VC-1, JPEG, VP8, VP9, HEVC, and AV1. It is identical to that of Rocket Lake CPUs. The CPU can now support two PCIe 4.0 x4 slots for SSDs and PCIe 5.0 x8 for a GPU. Based on the Xe-architecture, the integrated graphics card provides 96 EUs (Execution Units). The majority of laptops will use a PL1 of about 60 Watt, even if the CPU is rated at 45 W base power (115 W PL2).

The SoC is produced by Intel using a 10nm process called Intel 7 (an improvement over the 12th Gen).

Intel Core i9 13900H Performance

Our extensive benchmark testing shows that the Intel Core i9 13900H performs better than its predecessors and rivals across a range of performance parameters. The Intel Core i9 13900H is a dependable and powerful processor that works well for demanding applications like gaming and content creation.

The i9-13900H’s capabilities will be appreciated by content creators who deal with resource-intensive apps. The processor’s raw computing capacity helps with operations like video rendering, 3D modeling, and other content development, resulting in speedier project completion and more effective workflow.

For gamers looking for a laptop with exceptional performance, the Intel Core i9 13900H is a strong option. High clock speeds coupled with numerous cores guarantee fluid gameplay, even in the most graphically intensive games. An immersive gaming experience is boosted by the processor’s capacity to manage AI-enhanced graphics and real-time ray tracing.

Benchmarks show that the Intel Core i9 13900H outperforms its AMD counterpart, the Ryzen 9 5900HX, in most situations, performing admirably in both single- and multi-core tasks. In comparison to the 5900HX, the Intel Core i9 13900H also boasts a newer PCIe version, a larger L3 cache, and a higher turbo boost frequency.

Even with its superior performance, the Intel Core i9 13900H considers power efficiency. By optimizing energy use, advanced power management systems balance battery life and performance. Because of this, the CPU can be used in high-end mobile workstations as well as portable laptops.

Intel Core i9 13900H General Information

Product Collection	13th Generation Intel® Core™ i9 Processors
Code Name	Products formerly RAPTOR LAKE
Vertical Segment	Mobile
Processor Number	i9-13900H
Lithography	Intel 7
Recommended Customer Price	$617.00

Intel Core i9 13900H CPU Information

Total Cores	14
# of Performance-cores	6
# of Efficient-cores	8
Total Threads	20
Max Turbo Frequency	5.40 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency	5.40 GHz
Performance-core Max Turbo Frequency	5.40 GHz
Efficient-core Max Turbo Frequency	4.10 GHz
Cache	24 MB Intel® Smart Cache
Total L2 Cache	32 MB
Processor Base Power	45 W
Maximum Turbo Power	115 W
Minimum Assured Power	35 W

Intel Core i9 13900H Conclusion

To sum up, the Intel Core i9-13900H raises the bar for mobile high-performance processors. With its cutting-edge design, powerful clock speeds, and outstanding multitasking skills, it serves a wide range of computing needs, from mobile content creators to gamers.
