Samsung 860 Evo 2TB Review

You are currently viewing Samsung 860 Evo 2TB Review

Today we’re examining the new Samsung 860 Evo 2TB to discover how Samsung enhanced the most popular SSD in the entire world. In order to determine where it stands in our list of the best SSDs, we’ll compare it to the current crop of tenacious rivals who inspired the company to finally release a new series.

In some nations, Samsung’s EVO series outsells every other SSD by a two-to-one margin due to its enormous popularity. With the new EVO series, Samsung hopes to capitalize on that tested recipe in order to maintain its commanding and lucrative leading position. Samsung adjusts its pricing when rivals get too close to matching its performance, and the company always introduces a faster model when that happens.

Many people believe that Samsung’s 800 Pro SATA SSD products are the best available. Due to the superior durability of 2-bit per cell (MLC) flash over TLC, they perform better under heavy workloads. For the majority of consumer workloads, which are often brief and bursty, MLC is overkill.

The majority of us work in quarter-mile bursts, more akin to dragsters, rather than in marathon sessions. Because it frequently offers faster burst speeds than the Pro series, the EVO series is a suitable choice for consumer workloads, but that high level of performance only lasts for a brief period of time.

Samsung has historically manipulated the EVO’s price to place its products just a little bit above than the competitors. The corporation has a benefit beyond cost since it has internal supply chain control over key components. The EVO typically has better performance, warranty, and endurance standards, but Samsung keeps the pricing close enough that most customers are willing to pay a little more for a better product.

Now that almost every fab is producing high-quality 64-layer 3D NAND on a competitive node, Samsung’s advantage in V-NAND technology has diminished. With its fourth generation V-NAND, Samsung has made strides, but the competition has caught up.

It’s harder to distinguish the 860 EVO from the competition based just on performance because of the fixed restriction of the SATA interface. With the new series, Samsung was able to produce several other outstanding stats, but the cost is not one of them.

Samsung 860 Evo 2TB Specifications

Samsung 860 Evo 2TB 2

Samsung 860 Evo 2TB will be available in a variety of storage capacities, including a 250 GB, 500 GB, 1 TB, 2 TB, and even a 4 TB model. The 2 TB model of the drive is the sample that has been delivered to our testing facility. The latest 64-layer V-Nand node from Samsung will be used in the 860 EVO series’ 3-bit, multi-level-cell, three-dimensional (3D) NAND flash memory.

The 860 EVO has faster sequential read (550 MB/s) and write (520 MB/s) capabilities than the 850 EVO despite the SATA interface bandwidth limits. For Client PCs, these enhancements also result in improved random access performance. The largest SSD, the 860 EVO, claims to have improved endurance up to 2,400 TB of Total Bytes Written.

Additionally, a legitimate 5-year limited warranty is included. A redesigned MJX controller and several form factors enable significantly greater device interoperability. Without any problems, the 860 EVO fully supports Linux. There are three different form factors for the 860 EVO: 2.5 inch, M.2 2280, and mSATA.

Samsung 860 Evo 2TB is outfitted with a Samsung MJX controller, one of Samsung’s most recent iterations of controllers. Since they are all based on an ARM-based controller that is naturally compatible with SATA 6 Gb/s and can be used with the most recent NAND flash memory, revision controllers are actually rather comparable.

In some technical white papers, Samsung claimed that the EVO’s newest MGX, MHX, and now MJX controllers may deliver greater multi-tasking outcomes under demanding I/O loads and offer more stable performance. An ARM Cortex R4 CPU would serve as the controller’s foundation.

If Samsung continues to employ the same design, it will have three cores that can each carry out various operations simultaneously, enabling, for instance, the use of one core for reading data, another for writing data, and a third for optimization. And by itself, that fact makes Samsung’s claim of improved multitasking more plausible.

Samsung 860 Evo 2TB 3

Samsung 860 Evo 2TB Specs

Form factor:2.5-inch
Interface:SATA: 6 Gbps
NAND:Samsung 3D V-NAND 3bit MLC
Capacities:4TB, 2TB, 1TB, 500GB, 250GB
Cache:2GB LPDDR4
Controller:Samsung MJX Controller

Samsung 860 Evo 2TB Performance

Seq.Read/Write Speed:Up to 550/520MB/s
Ran.Read/Write Speed (QD32):Max. 98K IOPS / 90K IOPS
Device Sleep:2.6 mW for 1TB (Up to 8mW for 4TB)
Management SW:Magician Software for SSD management
TBW (Endurance):2TB: 1,200 TBW
Warranty:5 years or up to 2,400 TBW

Samsung 860 Evo 2TB Performance Tests

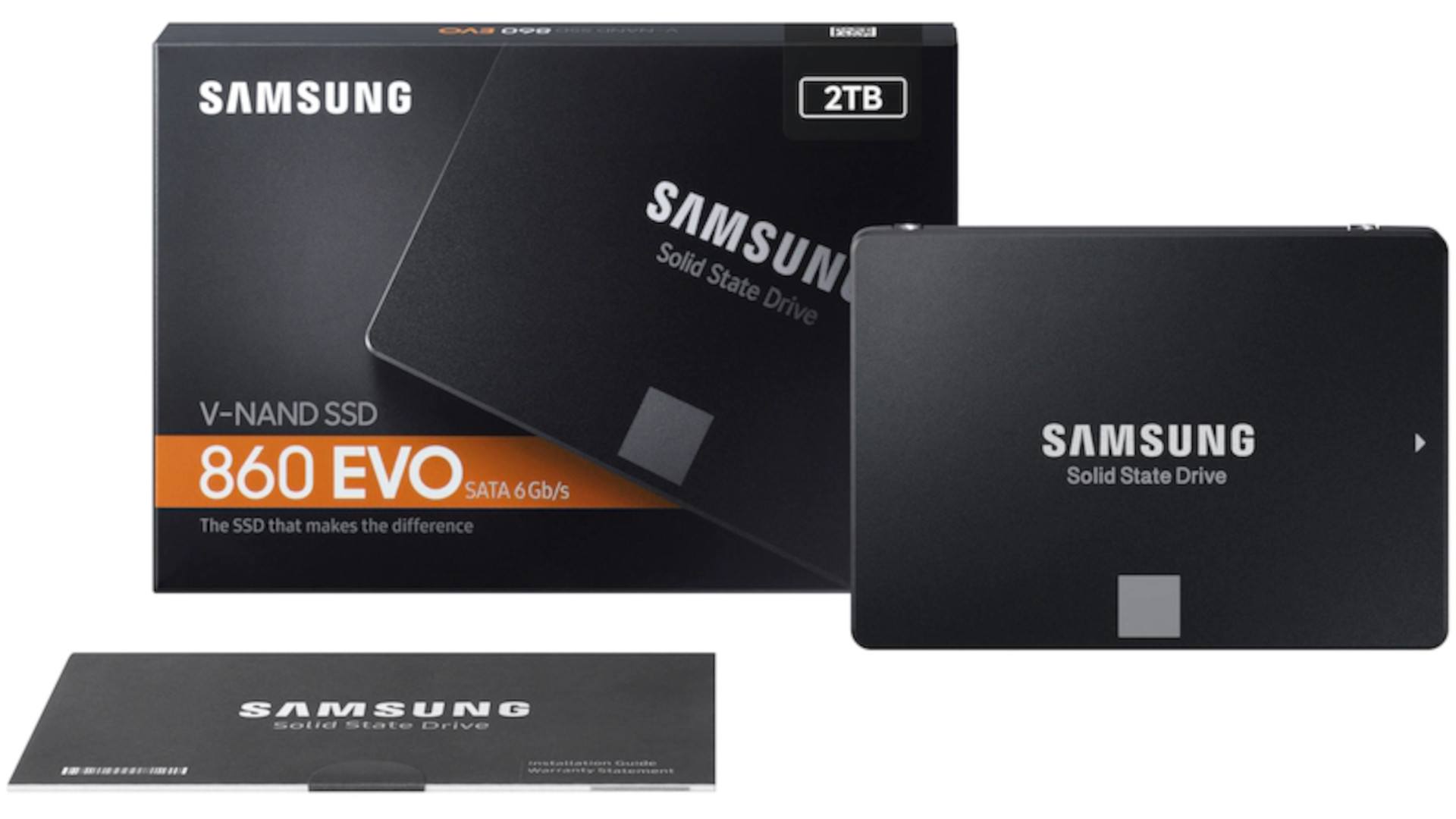

Samsung 860 Evo 2TB 4

The layout of our random write burst performance test is similar to the random read burst test, except the overall test length is 128MB, and each burst is only 4MB. The 16GB of the drive is used for the 4kB random write operations, which are issued one at a time with no queuing.

The 860 EVO has a substantially better burst random write speed than the 850 EVO, but Crucial’s SLC write caches on the MX300 and MX500 are still quicker.

Similar to the sustained random read test, our sustained 4kB random write test covers a 64GB range of the drive in up to one minute or 32GB per queue depth, with up to one minute of idle time between queue levels to allow the drive to cool down and flush write caches.

The Samsung 860 EVO outperforms the competing TLC drives in terms of sustained random write performance, coming in slightly ahead of the 860 PRO. Given that the Crucial and SanDisk 1TB models in this test appear to be at a disadvantage due to their smaller capacities, a more accurate comparison between the 2TB versions of those devices would likely reveal a much smaller advantage for the 860 EVO.

In contrast to the mixed random I/O test, our mixed sequential reads and writes test uses 128kB sequential accesses rather than 4kB random accesses at random locations, and the sequential test is run at queue depth 1. The variety of combinations examined, as well as the time and data transfer constraints, are all the same as before.

The 860 EVO exhibits a small performance regression in the mixed sequential I/O test, placing it just below the typical range for reliable SATA SSDs. A little more of an anomaly on the low side is the Crucial MX500.

The 860 EVO’s increase in power efficiency over its predecessor would be highly impressive if it weren’t for the 860 PRO. The 860 EVO’s efficiency is excellent and far superior to that of the competing standard SATA SSDs, despite being eclipsed by its MLC sibling.

Conclusion on Samsung 860 Evo 2TB

Samsung 860 Evo 2TB 5

Potential customers can see that there isn’t much innovation here by quickly reviewing the specifications. After a year, the cost of the 860 EVO is roughly equal to that of the 850 EVO, thus purchasing the new model won’t cost you any extra money.

The SATA interface may be more to blame for this lack of innovation than Samsung and its NAND. Although there have been numerous improvements made to this standard interface in terms of speed and capacity, there isn’t much more that can be done to increase the performance it can deliver.

Samsung 860 Evo 2TB is overpriced and underwhelming in terms of performance. However, for casual users, the EVO is definitely adequate and might be a choice if prices are aggressive.

Is Samsung 860 Evo 2TB good?

A solid-state drive (SSD) known for its dependability, performance, and general quality is the Samsung 860 Evo 2TB. When assessing its applicability, keep the following things in mind:

Performance: The Samsung 860 Evo uses the SATA III interface, providing sequential read and write speeds of up to 550 MB/s and 520 MB/s, respectively. Even though these speeds may not be as quick as those of NVMe-based SSDs, they are nevertheless a major gain over old-fashioned hard drives and offer consistent overall performance for routine computing workloads.

Storage Capacity: The Samsung 860 Evo 2TB of storage space is more than enough for operating systems, programs, games, and massive media files. Users that need a lot of storage for their data will find this big capacity to be extremely helpful.

Reliability and endurance: Samsung SSDs are renowned for their exceptional reliability and endurance. Samsung’s 3D V-NAND technology, which is used in the 860 Evo, extends the longevity and endurance of the drive. A five-year limited guarantee is also included, adding to the security.

Systems that support 2.5-inch SATA drives, such as desktop PCs, laptops, and game consoles, are all compatible with the Samsung 860 Evo. To get the optimum performance, it’s crucial to make sure your system has a SATA III interface.

Price: The Samsung 860 Evo offers good value for the features and performance it offers at a price that is frequently competitive. It is usually advised to examine pricing and take into account alternatives, if any, because SSD prices might change over time and in different geographic locations.

The Samsung 860 Evo 2TB is a renowned and dependable SSD in general. It offers an excellent blend of performance, storage, and dependability, making it appropriate for a variety of applications, from content creation to general computing.

Is Samsung 860 Evo 2TB good for gaming?

The Samsung 860 Evo 2TB is a good SSD for games, so yes. This is why:

Performance: Despite using the slower SATA III interface than NVMe-based SSDs, the Samsung 860 Evo still outperforms conventional hard drives in terms of performance. Fast data access results in shorter loading times for games and more fluid gaming thanks to sequential read and write speeds of up to 550 and 520 MB/s, respectively.

Storage Capacity: The Samsung 860 Evo 2TB of storage capacity provides enough of room for keeping many games. You may install many games thanks to this capacity without having to worry about fast running out of storage. Additionally, installing games on an SSD might enhance game performance because of the speedier read speeds that result in quicker asset loading and fewer texture pop-ins.

Samsung SSDs, particularly the 860 Evo, are renowned for their durability and dependability. Samsung’s 3D V-NAND technology, which is used in the 860 Evo, extends the longevity and endurance of the drive. By doing this, you can be certain that your gaming data is kept safely and that the drive can handle the constant read and write operations that gaming can involve.

Wide range of systems, including gaming PCs and consoles that accept 2.5-inch SATA SSDs, are compatible with the Samsung 860 Evo 2TB . With the proper enclosure for consoles, it can be used as an external drive or quickly installed in a desktop PC.

Even while it might not have the fastest read and write speeds on the market, the Samsung 860 Evo still outperforms conventional hard drives in terms of performance. It is a wonderful option for gamers who want to optimize loading times in their favorite games and their gaming experience because to its storage capacity, dependability, and affordable price.

Does Samsung 860 Evo 2TB run hot?

Like other solid-state drives (SSDs), the Samsung 860 Evo 2TB operates at lower temperatures than conventional hard disk drives (HDDs). SSDs produce less heat while operating because they have no moving parts.

To effectively dissipate heat, the Samsung 860 Evo is built with thermal management features. It features a metal body that serves as a heat sink and keeps it at the right temperature for operation. Additionally, it makes use of cutting-edge flash memory technology, which is cooler and more energy-efficient than earlier SSD versions.

Although the Samsung 860 Evo is usually well-suited to dissipate heat, the actual temperature it achieves during operation might vary depending on a number of variables, including the ambient temperature, airflow within the system, and workload intensity.

The SSD’s temperature may rise if your system’s cooling is insufficient or if it is used heavily for an extended period of time. It’s crucial to remember that SSDs have temperature monitoring and thermal protection methods built in to guard against overheating and guarantee secure functioning.

You can use a variety of software tools provided by the manufacturer or third-party applications to keep track of the temperature of your Samsung 860 Evo or any other SSD. These instruments can give you current temperature measurements and aid in the detection of any potential temperature-related problems.

In general, the Samsung 860 Evo 2TB should operate within reasonable temperature ranges without being overheated as long as your system has appropriate cooling and airflow and you’re not overloading the drive.

What gen is Samsung 860 Evo 2TB?

The third version of the Serial ATA (SATA) standard, SATA III (6.0 Gbps), serves as the foundation for the Samsung 860 Evo 2TB. SATA III may provide high-speed performance for storage devices like the Samsung 860 Evo thanks to its maximum data transfer rate of 6 Gbps.

The Samsung 860 Evo uses SATA III technology rather than the more recent NVMe (Non-Volatile Memory Express) protocol, which delivers even faster data transfer speeds. This is a key distinction to make. NVMe drives, which are based on the PCIe (Peripheral Component Interconnect Express) interface and offer better performance than SATA-based drives, include the Samsung 970 Evo series.

Is Samsung 860 Evo 2TB compatible with PS5?

The PlayStation 5 (PS5) is not officially compatible with the Samsung 860 Evo 2TB. The PS5 does not support the usage of extra storage via the SATA interface, while the Samsung 860 Evo does.

However, Sony has stated that a future system software update will include support for extra storage expansion via the PS5’s M.2 expansion connector. It should be noted that compatibility and support for specific M.2 SSDs will be determined by Sony’s standards and recommendations in that update.
