When it comes to designing a high-end gaming system, one component that sometimes goes unnoticed is the power supply unit (PSU). With the ROG THOR 1200P2 GAMING Power Supply, ASUS ROG (Republic of Gamers) hopes to alter that.
This 1200-watt powerhouse not only supplies enough power for even the most demanding gaming setups, but it also has a number of unique features that set it apart in the crowded power supply market. In this comprehensive review, we’ll examine the ROG THOR 1200P2 GAMING Power Supply to see if it lives up to the ROG reputation for quality and innovation.
We’re putting the new ROG THOR 1200P2 GAMING Power Supply through its paces today. The firm is not well-known for their power supplies (they are more linked with motherboards, graphics cards, displays, and accessories).
Nonetheless, we got the opportunity to test the first Thor towards the end of 2018, when the 1200W version (cost 329 EUR/USD) was evaluated, gaining the “Best Hardware” award. Will the updated version be as popular?
The first details regarding the new series were revealed at the start of the year. The PCI Express® 5.0 compliant 12-pin power cord stolen from the NVIDIA MicroFit design, which can only accommodate up to 40W of power, is one of the new features offered in the Thor II.
Unfortunately, it isn’t the 16-pin capable of generating up to 600 W (which requires four extra pins), as shown in the future Asus Loki series. So, what precisely does that mean? Because Thor II PCIe Gen5 ports do not require more than 450W, the Geforce RTX 30 Founders Edition will function with them. Why is that done in that manner, Asus? Strange, but perhaps a new Thor II version will be released?
ROG THOR 1200P2 GAMING Power Supply Design & Build Quality
Let’s start with something out of the ordinary. An OLED display that monitors power use in real time is available here. Aura Sync compatibility also allows you to personalize and sync lighting effects with other compatible gear. And last, the ROG THOR 1200P2 GAMING Power Supply is an ATX power supply with a semi-passive mode.
We have a Seasonic platform with the greatest quality and dependability that characterizes this brand under the hood. This time, it’s a 1000 Watt (black) model with an 80 PLUS® Platinum rating, which indicates it’s 92% efficient at 50% load at 115 V and 94% efficient at 230 V.
It is critical since less energy is wasted (at least not significantly), which should reduce your energy cost. It is critical in these trying times, when energy prices have lately soared. Speaking of fans, it’s a 135 mm Axial-tech fan with PWM control to reduce noise and keep thermals under control. It is possible to disengage the fanless mode; the fan RPM will then be 400-450.

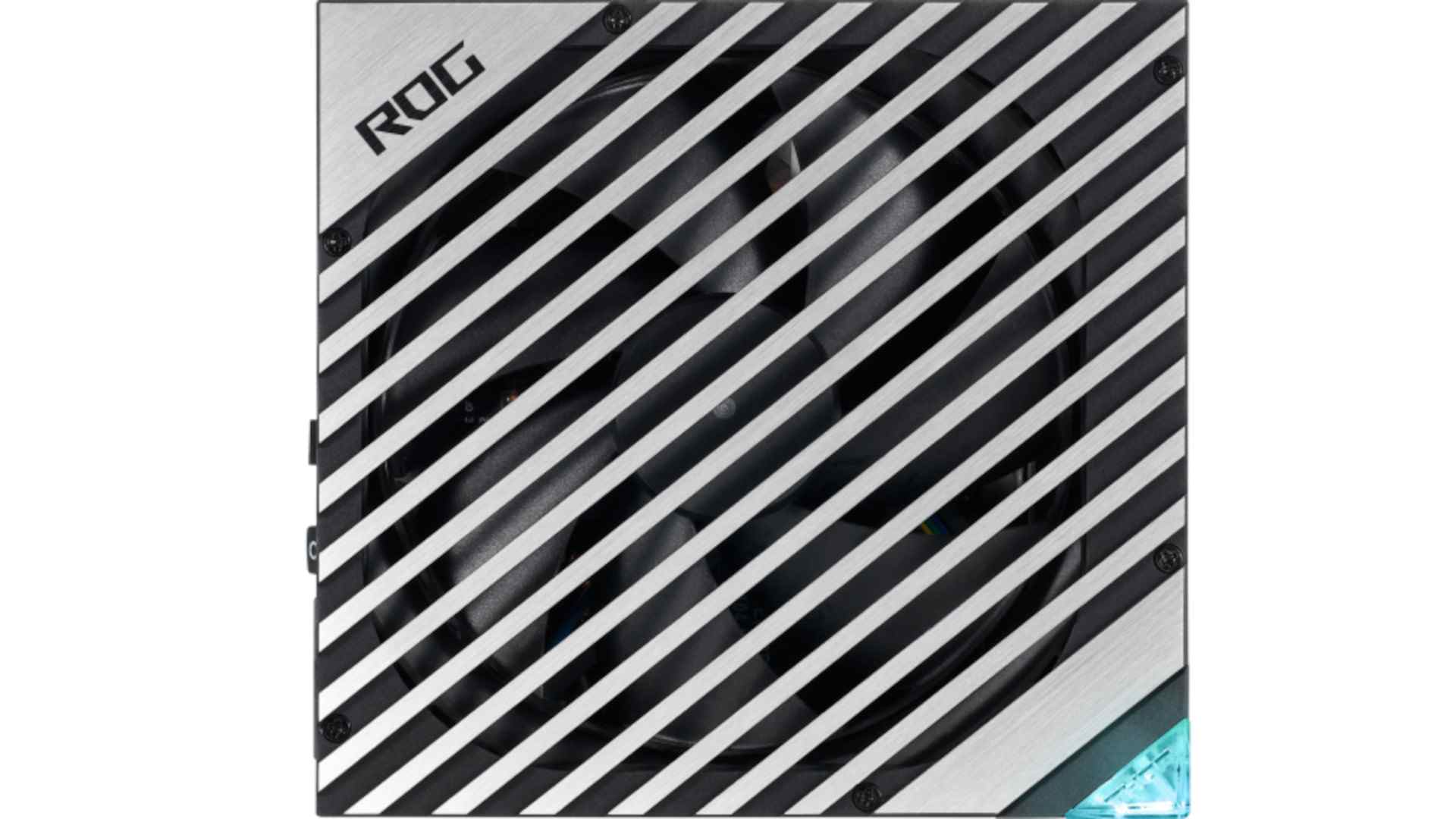

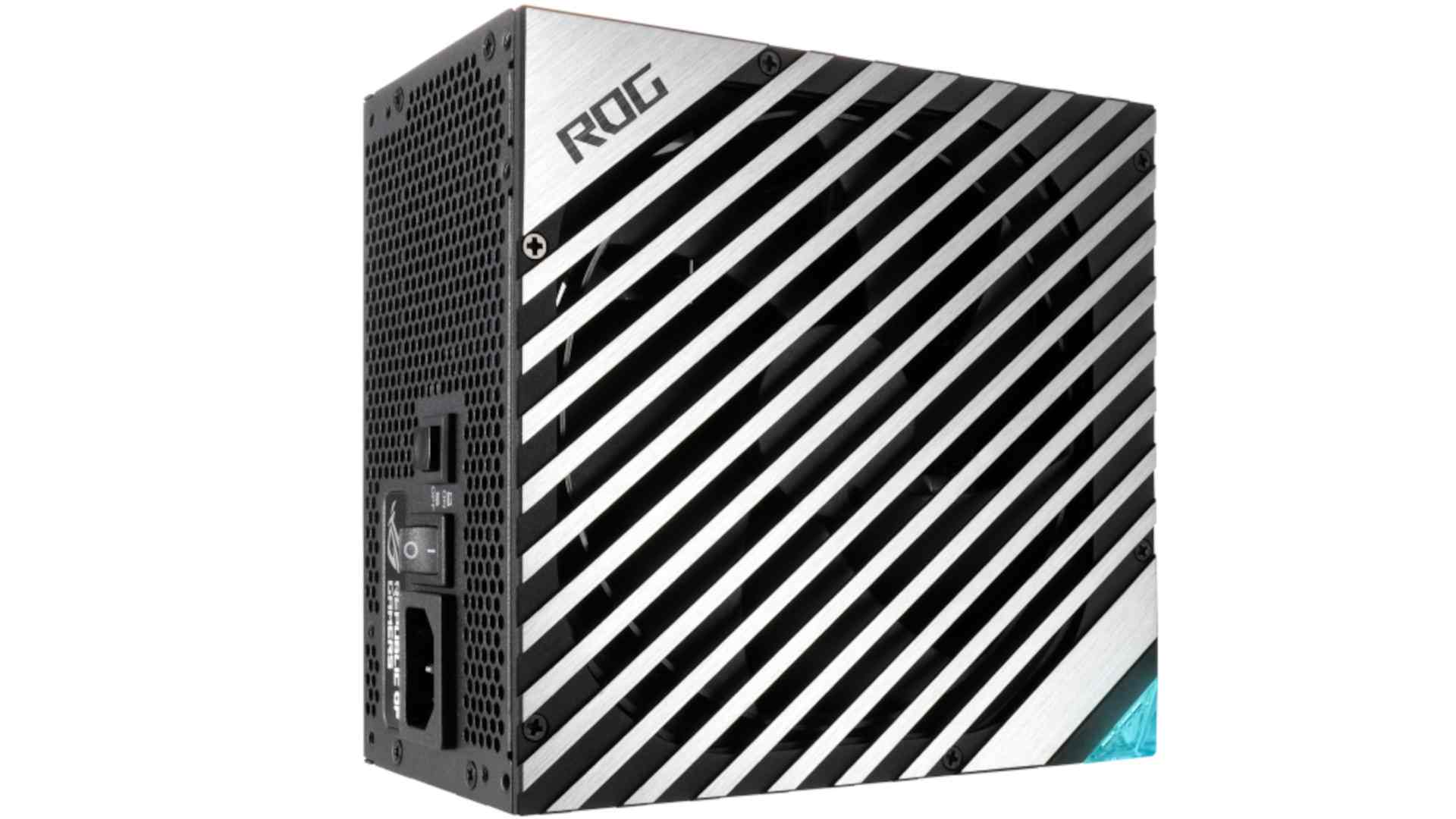

The ROG THOR 1200P2 GAMING Power Supply has a sleek and quality appearance that is consistent with the ASUS ROG aesthetic. It’s matte black with brushed metal embellishments and the famous ROG logo. The RGB lighting features on both sides of the power supply give a splash of color without being too ostentatious.
The integrated OLED display, which is positioned on the side facing the interior of your PC case, is one of the striking design components. This display is an excellent addition, allowing you to monitor key system information without the need for third-party software or other hardware.
The build quality is excellent, as anticipated from an ASUS ROG product. The power supply feels robust and well-made, and the cables are of great quality, giving it a premium look and feel.

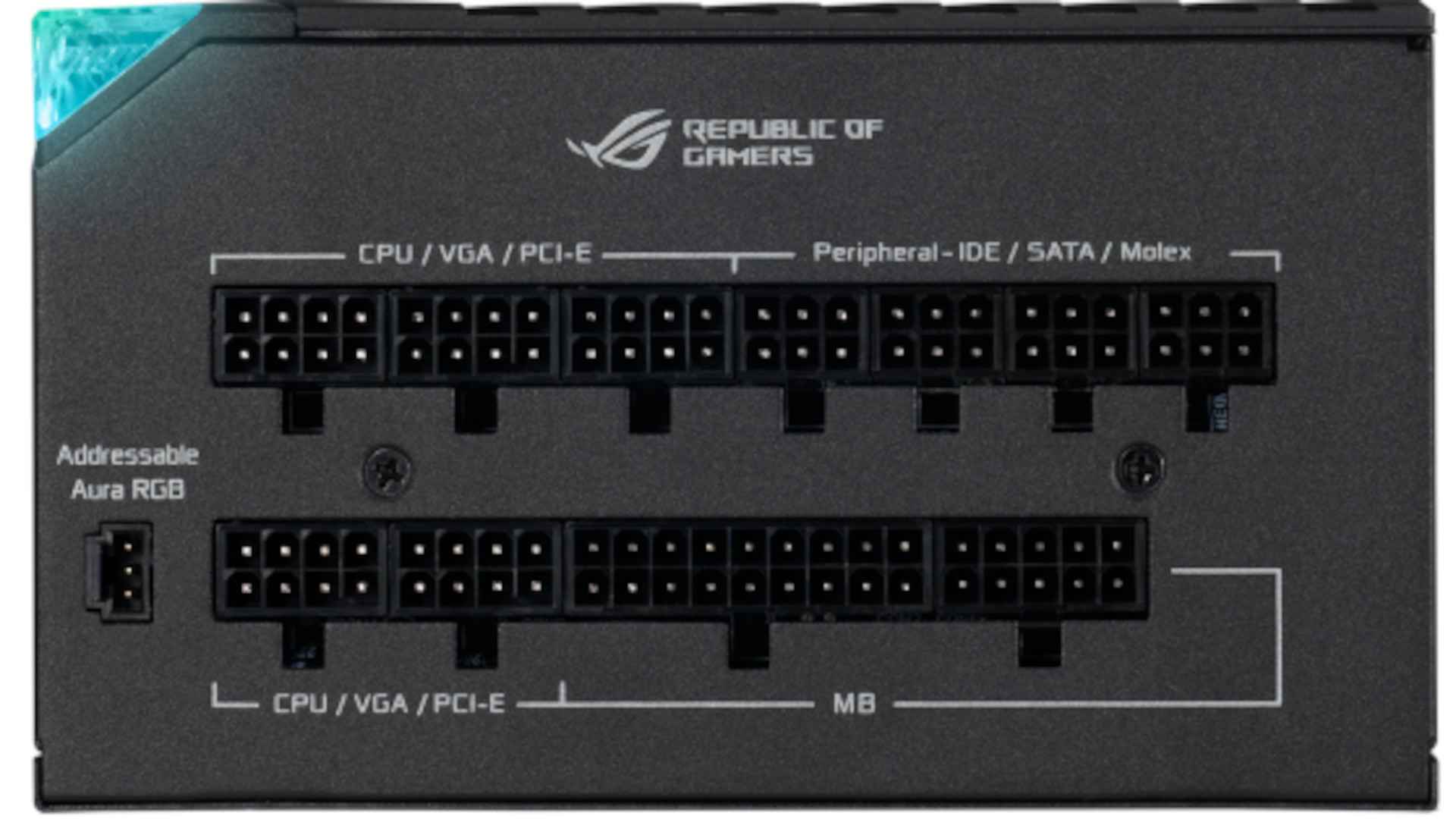

It’s also worth mentioning the modular cable architecture. It enables you to connect just the connections you require, minimizing clutter and enhancing ventilation within your computer box. The wires are labeled and simple to connect, making setup a pleasure.
ROG THOR 1200P2 GAMING Power Supply Unboxing & Hardware

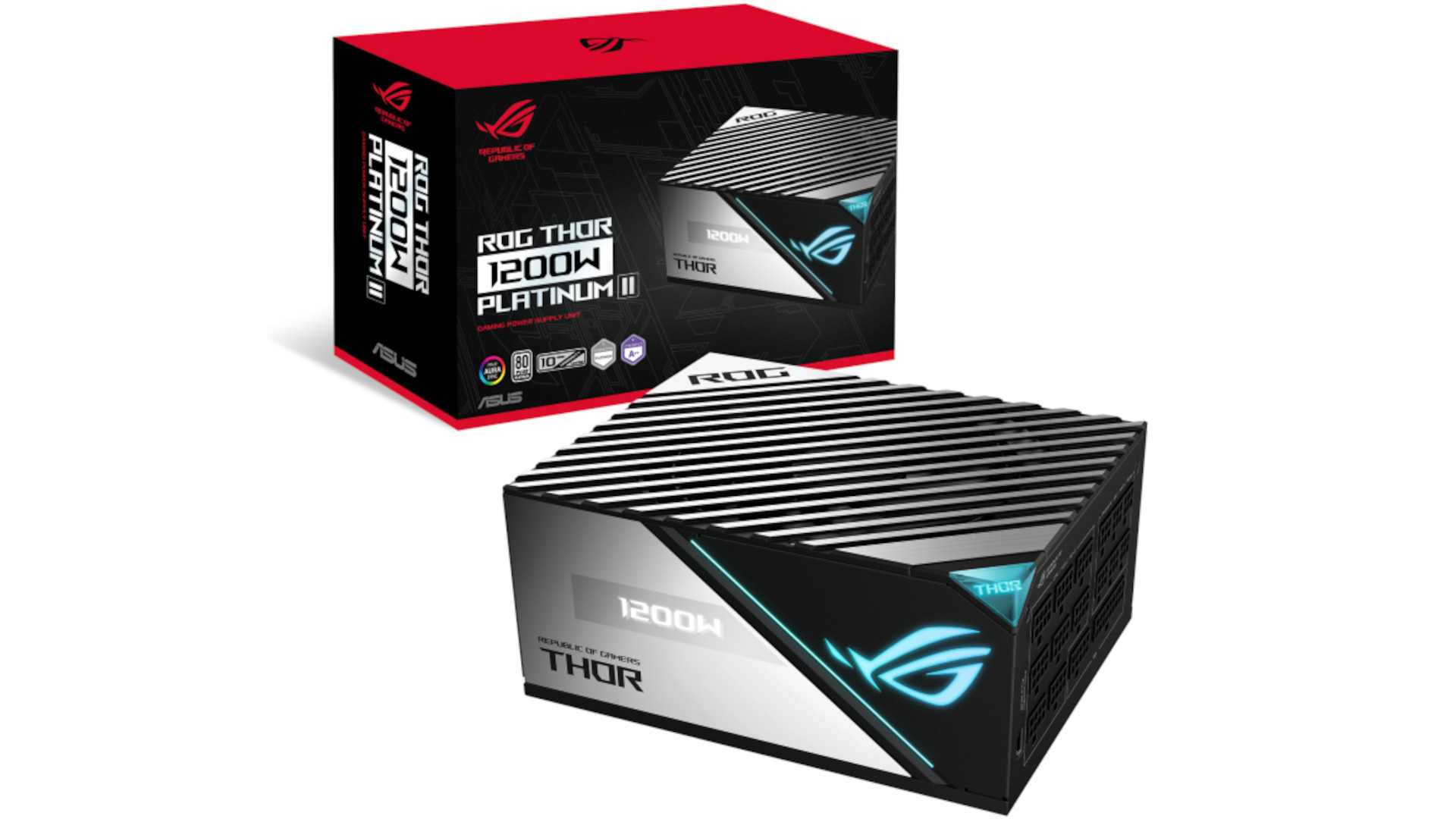

The ROG THOR II’s packaging will be rather easy to identify in shops, given it employs Asus’s typical black-red color scheme. On the front is a snapshot of the PSU, as well as information on Aura Sync compatibility, the 80 Plus Platinum and Cybernetics Platinum certificates, and the A++ (for noise emission) rating from Cybernetics.
There is information about the features of this power supply on the back of the box. The specification and information regarding the cable set may be found on one of the sides. With a cardboard mold, the inside is separated into two sections: one contains all of the wiring, and the other houses the unit. It is held in place by two polyethylene foam molds.
Because this is a 100% modular design (including the 24-pin ATX motherboard lead), it includes a plethora of cords. The device is mostly black with a visible OLED screen. With its brushed steel finish and diagonal crossing fan cover, the Asus ROG Thor II is one of the most visually appealing power supplies.
The modular cables come in a high-quality, branded canvas bag. You will also receive a 20% discount code if you decide to purchase the custom cables.
Because the cables are entirely black, they will suit the majority of consumers.
All cables are available in both rigid and flexible braided casings. Except for the SATA and Molex cables (standard flat ribbon-style), all connections are separately sleeved. They are sufficient in terms of both number and length.Four sets of 6+2 pin PCIe cables measuring 680 mm are supplied, with the other two measuring 760 mm. The 24-pin ATX motherboard cable measures 61 cm in length, while the 8-pin ATX CPU leads measure 66 cm. SATA cables are 800 and 760 mm long, respectively, while the Molex lead is 690 mm long in total.
You can view the new PCIe 5.0 compliant cable here, although it only supports 450 W (due to being 12-pin) rather than 600 W (if it were 12+4). On the PSU side, there are two 8-pin connections. This device provides enough power for most everyday users, since it has a single +12 V rail with a total of 996 W (83 A), thus it should be able to handle an RTX 3090.
ROG THOR 1200P2 GAMING Power Supply General Information
Manufacturer | ASUS ROG (Republic of Gamers) |
Model | ROG THOR 1200P2 |
Wattage | 1200 Watts |
Efficiency Certification | 80 PLUS Platinum |
Modular Design | Fully Modular |
Form Factor | ATX (Standard) |
Dimensions (L x W x H) | 190 x 150 x 86 mm |
AC Input Voltage | 100-240V |
Fan | 135mm Axial-tech Fan |
Fan Bearing Type | Dual Ball Bearing |
Connectors | – 1 x 24-pin ATX main power connector |
– 2 x 8-pin (4+4) CPU connectors | |
– 6 x 8-pin (6+2) PCIe connectors | |
– 12 x SATA connectors | |
– 4 x 4-pin Molex connectors | |
Protection Features | Over Voltage Protection, Over Power Protection, |
Over Current Protection, Short Circuit | |
Protection, Surge Protection | |
Operating Temperature | 0°C to 50°C |
OLED Display | Yes (Real-time system monitoring) |
RGB Lighting | Yes (Aura Sync compatible) |
Warranty | 10 years |
ROG THOR 1200P2 GAMING Power Supply Conclusion
The ROG THOR 1200P2 GAMING Power Supply is a beast that blends raw power with premium features and superb build quality. It’s designed for gamers and PC enthusiasts that expect the finest, with its 1200-watt output, 80 PLUS Platinum efficiency, RGB lighting, OLED display, and silent operation.
